Flexible Printed Circuits (FPCs) are essential components in many modern electronic devices, offering flexibility, lightweight design, and compact form factors. One of the critical choices in FPC design is selecting the right insulation material. The two most common materials are Polyimide coverlay and solder mask. While Polyimide coverlay is often the standard choice, there are specific situations where it is not suitable, and solder mask becomes the preferred option. In this blog, we’ll explore the differences between these two materials, why certain FPC designs require solder mask, and why white solder mask is particularly popular in LED strip applications.

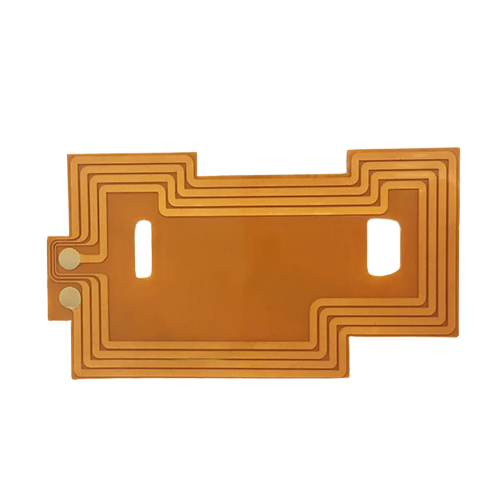

Polyimide Coverlay: The Standard Choice

Polyimide coverlay is a widely used insulation material in FPCs due to its excellent properties. It is composed of a polyimide film coated with adhesive, which is then laminated onto the circuit. This material is known for its durability, flexibility, and high thermal resistance, making it ideal for environments where the circuit may be exposed to high temperatures or mechanical stress.

Polyimide coverlay is particularly suited for applications requiring reliable protection over extended periods. It is commonly used in automotive electronics, aerospace, and other industries where durability is crucial. Its ability to withstand harsh conditions while maintaining flexibility makes it a go-to choice for many FPC designs.

Limitations of Polyimide Coverlay

Despite its many advantages, Polyimide coverlay has certain limitations that can restrict its use in specific applications:

Fine-Pitch Components and Tight Tolerances: Polyimide coverlay can be challenging to apply accurately in designs with fine-pitch components or where precise openings are required. The thickness and stiffness of the coverlay can make it difficult to achieve the necessary precision, leading to potential issues in the circuit's performance.

Complex or Intricate Designs: In designs with complex or intricate patterns, the Polyimide coverlay may not conform well to the circuit, leading to poor adhesion or gaps in the coverage. This can compromise the insulation and protection of the circuit.

Transparency or Specific Color Requirements: Polyimide coverlay is typically opaque and brown in color, which may not be suitable for applications requiring transparency or specific aesthetic considerations. For example, in designs where the appearance of the circuit is important, such as in consumer electronics or LED strips, the color of the insulation material can be a deciding factor.

These limitations highlight the need for an alternative solution in certain FPC designs, which is where solder mask comes into play.

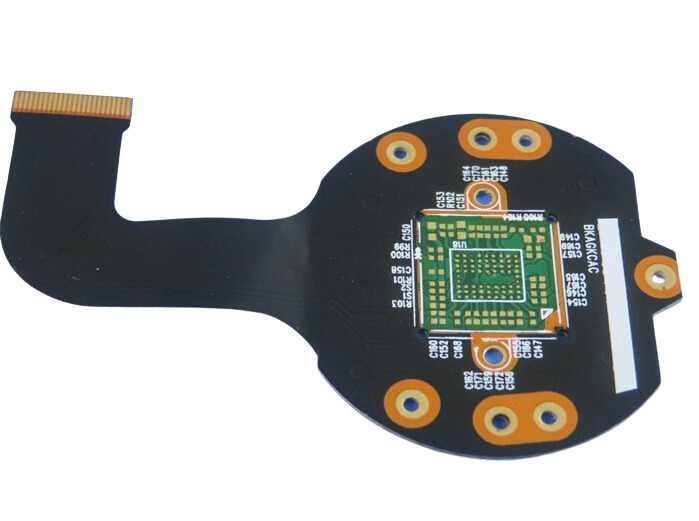

When to Use Solder Mask in FPCs

Solder mask is another insulation material used in FPCs, offering distinct advantages in situations where Polyimide coverlay falls short. Unlike Polyimide coverlay, solder mask is applied as a liquid, which is then cured to form a protective layer. This process allows for greater precision and flexibility in design.

Situations where solder mask is preferred include:

High-Density Circuits with Fine-Pitch Components: Solder mask can be applied with a high degree of accuracy, making it ideal for circuits with fine-pitch components or where tight tolerances are required. Its ability to conform to intricate designs ensures that even the most complex circuits are well-protected.

Designs Requiring Transparent or Colored Insulation: Solder mask is available in various colors, including white, green, black, and transparent options. This versatility makes it suitable for applications where the appearance of the circuit is important, such as in LED strips or consumer electronics.

Cost-Effective Solutions for Large-Scale Production: Solder mask is generally more cost-effective than Polyimide coverlay, particularly in large-scale production. Its ease of application and lower material costs make it a practical choice for manufacturers looking to reduce expenses without compromising quality.

Differences Between Polyimide Coverlay and Solder Mask

When comparing Polyimide coverlay and solder mask, several key differences emerge:

· Flexibility: Polyimide coverlay is typically more flexible than solder mask, making it better suited for applications where the circuit will be subjected to repeated bending or flexing.

· Thermal Resistance: Polyimide coverlay has higher thermal resistance, making it ideal for high-temperature environments.

· Thickness: Solder mask is thinner than Polyimide coverlay, which can be beneficial in designs requiring minimal added thickness.

· Application Method: Polyimide coverlay is laminated onto the circuit, while solder mask is applied as a liquid and cured. This difference in application can impact the precision and suitability of each material for specific designs.

Conclusion

Choosing the right insulation material for FPCs is crucial to ensuring the performance and durability of the circuit. While Polyimide coverlay is a standard choice for its flexibility and thermal resistance, there are specific scenarios where solder mask is a better option. Solder mask’s precision, versatility in color, and cost-effectiveness make it ideal for high-density circuits, complex designs, and applications with specific aesthetic requirements, such as LED strips. Understanding the differences between these materials and their appropriate applications will help you make informed decisions in your FPC designs, ensuring optimal performance and longevity.
