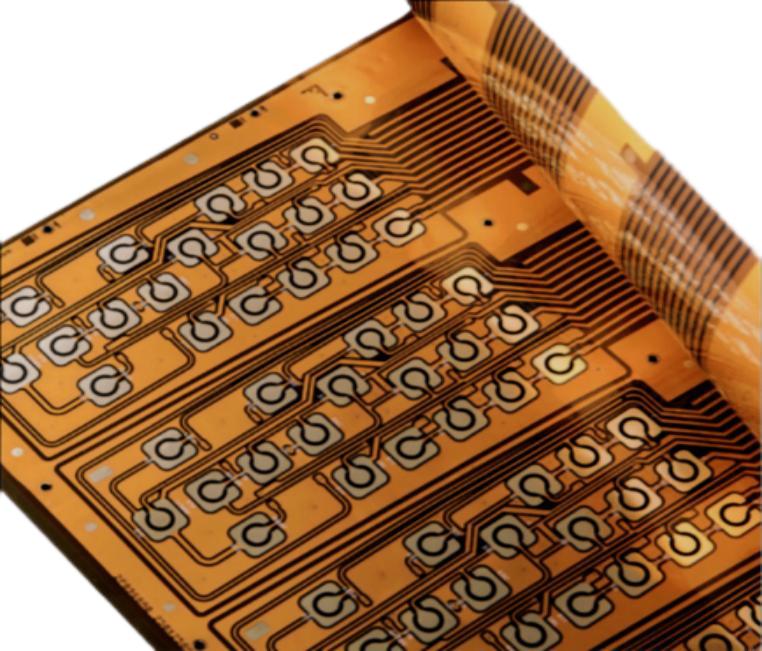

In the dynamic and innovation-driven panorama of modern electronics, Flexible Printed Circuits (FPCs) have emerged as the linchpin technology, facilitating the sleek, compact, and highly functional designs that grace smartphones, wearable devices, automotive electronics, and a plethora of other cutting-edge applications. However, ensuring the long-term viability and robustness of these FPCs in the face of real-world challenges demands a comprehensive and meticulous approach: reliability testing.

The Paramount Significance of FPC Reliability Testing

FPCs are thrust into a crucible of harsh conditions throughout their operational lifespan. They must endure mechanical stressors of diverse magnitudes and modalities, including repeated bending, torsion, and vibration. In the context of foldable smartphones and flexible wearables, for instance, the FPCs are subject to countless flexural cycles. The conductive traces and solder joints within must possess the resilience to withstand such deformations without succumbing to micro-cracks or fractures.

Thermal stress presents another formidable hurdle. Temperature fluctuations span a vast spectrum, from the frigid depths of sub-zero environments, where they may plummet to -40°C or even lower in certain outdoor or aerospace applications, to the sweltering heat near power-dense components like processors, which can soar above +85°C. Automotive FPCs, in particular, brave not only extreme temperatures but also potential chemical onslaughts, moisture ingress, and electromagnetic interference (EMI). Without exhaustive reliability testing, the specter of premature failure looms large, potentially precipitating costly recalls, disgruntled customers, and, in some cases, grave safety risks.

In-depth Exploration of FPC Reliability Tests

1. Mechanical Testing Regimens

• a. Bending Endurance Tests: This is the cornerstone mechanical evaluation for FPCs. Specimens are methodically and repeatedly bent to a precisely defined radius, mirroring the actual flexural demands they encounter in end-use applications. In a state-of-the-art foldable phone FPC, samples might endure millions of bending cycles. During this process, parameters such as resistance fluctuations are meticulously monitored. Any abrupt or incremental changes could signal the onset of micro-cracks or breaks in the circuitry, potentially compromising signal integrity. Advanced dynamic bending tests, which vary the bending frequency to mimic real-world usage patterns more faithfully, are also becoming commonplace.




• b. Tensile and Compressive Stress Tests: These assays gauge the FPC's capacity to withstand axial forces. In wearable gizmos, where the FPC may stretch and contract as the user moves, tensile strength is of the essence. By incrementally applying a pulling force until the FPC fractures, engineers can accurately ascertain its breaking point and engineer appropriate safety margins. Compressive tests, conversely, are relevant in scenarios where the FPC may be sandwiched or subjected to compressive loads, such as in densely packaged electronic assemblies.




• c. Vibration Resilience Tests: A multitude of electronic devices, especially those in automotive, industrial, and aerospace sectors, are incessantly buffeted by vibrations. FPCs interfacing with motors, rotating machinery, or vibrating components must safeguard their electrical integrity. Vibration testing subjects the FPC to sinusoidal or random vibrations across a broad range of frequencies and amplitudes. This regimen helps unearth any latent issues like loose connections, wire fatigue, or solder joint failures that could be instigated by prolonged exposure to vibration.

2. Thermal Testing Paradigms

• a. Thermal Cycling Assays: FPCs are perpetually subjected to temperature swings as the host device powers on and off or transitions between disparate operating environments. Thermal cycling tests entail rapid and repetitive temperature transitions between extreme highs and lows, typically spanning from -40°C to +85°C, though more demanding applications may mandate wider excursions. This cyclic process is repeated hundreds or even thousands of times. The overarching goal is to detect any delamination between laminate layers, alterations in material properties, or solder joint failures stemming from the differential thermal expansion and contraction of the heterogeneous materials within the FPC.




• b. High-Temperature Storage and Operational Trials: In certain niches, such as automotive under-hood applications or proximity to high-power processors, FPCs must perform reliably under elevated temperature regimes. High-temperature storage tests sequester the FPC at a constant extreme temperature for an extended duration, followed by comprehensive electrical testing to detect any signs of degradation. High-temperature operation tests, on the other hand, mimic actual working conditions, vigilantly monitoring the FPC's performance as it conducts signals and powers components while being subjected to heat.

3. Environmental Testing Landscapes

• a. Moisture and Humidity Exposure Tests: Exposure to ambient moisture can wreak havoc on FPCs, leading to corrosion of conductive traces, degradation of insulation materials, and the dreaded short circuits. FPC specimens are ensconced in humidity chambers with precisely controlled levels of relative humidity, sometimes cresting at 95% or higher. Electrical properties are continuously monitored to detect any insidious changes. Ingress Protection (IP) tests, which evaluate the FPC's ability to repel water penetration, are also integral, especially in waterproof wearables and outdoor electronics.




• b. Chemical Resistance Evaluations: In industrial, automotive, and chemical processing environments, FPCs may come into contact with a panoply of chemicals, including oils, solvents, and cleaning agents. Chemical resistance tests involve immersing the FPC in specific chemicals for a predetermined period, after which its physical and electrical integrity is scrupulously examined. This ensures that the materials constituting the FPC can withstand potential chemical assaults without sacrificing functionality.




• c. Electromagnetic Compatibility (EMC) Audits: With the burgeoning complexity of electronic ecosystems and the imperative to coexist harmoniously with other devices, FPCs must neither emit excessive electromagnetic radiation that could interfere with neighboring components nor be overly sensitive to external fields. EMC tests measure both the emissions and immunity of the FPC, ensuring compliance with stringent industry standards and seamless operation within its intended electromagnetic milieu.

Adherence to Testing Standards and Best Practices

The electronics industry hinges on established benchmarks, such as those promulgated by the IPC (Association Connecting Electronics Industries). Standards like IPC-6013 offer comprehensive guidelines for the qualification and acceptance of flexible printed boards. These define test methods with granular precision, prescribe sample sizes, delineate acceptance criteria, and mandate reporting requirements. Following these standards is sacrosanct, as it ensures consistency and comparability across the gamut of manufacturers and products.

Best practices encompass astute sample selection, ensuring that test specimens are truly representative of the production batch. Meticulous calibration and regular maintenance of test equipment are non-negotiable to glean accurate results. Additionally, continuous monitoring and exhaustive data collection during testing empower engineers to conduct in-depth analyses of failure modes and trends, thereby facilitating informed design enhancements.

Concluding Insights

FPC reliability testing is not a discretionary luxury but an unequivocal necessity in today's electronics zeitgeist. It is the bulwark that safeguards the performance, longevity, and safety of myriad electronic devices. As technology hurtles forward and FPCs are pushed to their limits in novel and avant-garde applications, the exigency for rigorous and all-encompassing reliability testing will only intensify.
