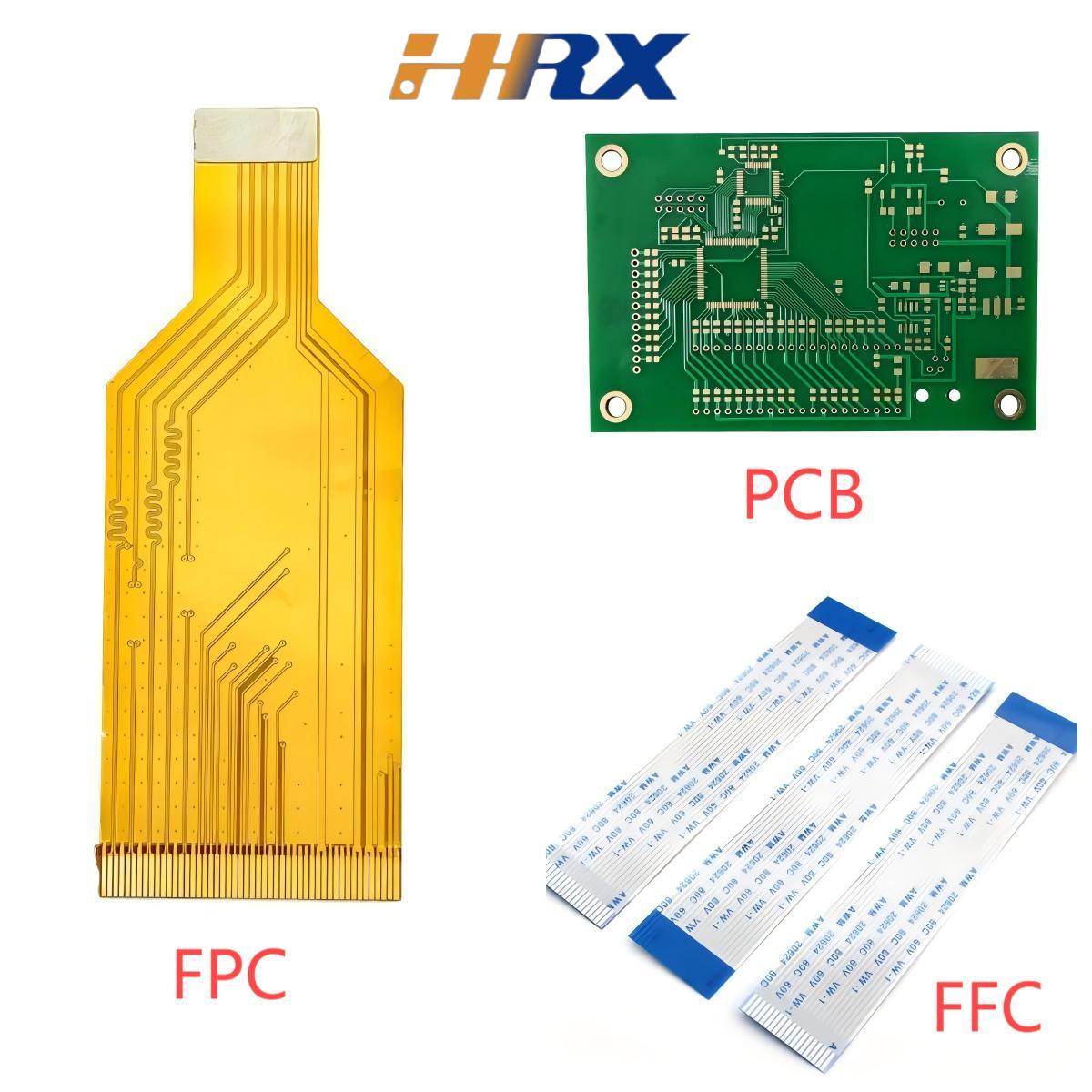

As Shenzhen Huaruixin Electronics Co., Ltd., a professional manufacturer specialized in the design and production of FPC (Flexible Printed Circuit), PCB (Printed Circuit Board), and Rigid - Flex Printed Boards, we have extensive experience in the field. We understand the importance of balancing cost - effectiveness and performance for our customers. Here are some ways to reduce the cost of FPC flex cables without sacrificing performance.

1. Material Selection

1.1 Base Materials

The main base materials of FPC flex cables are polyimide (PI) film and copper foil. At Huaruixin Electronics, through numerous experiments and practical production verifications, we have mastered the skill of accurately selecting PI films that meet different performance requirements. For example, for FPC flex cables that do not require extreme high - temperature resistance but have certain standards for flexibility and electrical performance, we choose medium - grade PI films with high cost - performance. These films can ensure stability at normal operating temperatures and reduce costs compared to high - end high - temperature - resistant PI films.

Regarding copper foil, we select the appropriate thickness and purity according to different current - carrying requirements and signal transmission demands. Thinner copper foil generally has a lower cost, but if the current is large, overly thin copper foil may increase resistance and affect performance. Our professional circuit design knowledge and rich production experience enable us to accurately calculate the minimum copper foil thickness that meets performance requirements, avoiding unnecessary material waste.

1.2 Cover Layers and Reinforcement Materials

Cover layers are used to protect the circuit, and reinforcement materials enhance the strength of specific areas of the FPC flex cable. When choosing cover layers, for applications in mild environments where extremely high insulation and wear resistance are not required, we use ordinary polyester (PET) cover layers instead of more expensive PI cover layers, ensuring basic protection functions while reducing costs. For reinforcement materials, we optimize the area and material according to the actual stress points and strength requirements of the FPC flex cable. For example, in some bending areas with less stress, we use lightweight and low - cost paper - based reinforcement materials, while in connection areas that need to withstand greater external forces, we use high - strength but moderately priced stainless - steel reinforcement sheets.

2. Design Optimization

2.1 Circuit Layout

A reasonable circuit layout is crucial for cost reduction. Our professional design team at Huaruixin Electronics uses advanced circuit design software and rich industry experience to follow the shortest - path principle when designing FPC flex cable circuits, reducing the length and intersection of circuits. This not only reduces the amount of copper foil used but also decreases signal interference caused by long or intersecting circuits, improving signal transmission performance. For instance, in the design of some complex multi - circuit FPC flex cables, through layout optimization, we successfully reduced the copper foil usage by 15% - 20%, while significantly enhancing signal transmission stability.

2.2 Minimizing the Number of Vias

Vias are used to connect circuits on different layers in FPC flex cables, but too many vias will increase production costs. Our design team carefully plans the inter - layer circuit routes to minimize the number of vias. In some multi - layer FPC flex cable designs, by reasonably adjusting the circuit direction, we change the circuits that originally required multiple vias for connection to be routed within the same layer. This not only reduces the processing cost of vias but also improves the reliability of the FPC flex cable because vias are relatively weak points in the FPC flex cable, and reducing the number of vias can reduce the risk of product failures caused by via failures.

2.3 Standardized Design

Implementing standardized design is an important means of cost reduction. We at Huaruixin Electronics classify and summarize common application scenarios of FPC flex cables and establish a series of standardized design templates. For new customer requirements, we first evaluate whether they can be modified based on existing templates, which can greatly shorten the design cycle and reduce design costs. At the same time, standardized design is conducive to the standardization and automation of the production process, improving production efficiency and reducing production costs. For example, for the common FPC flex cables used to connect mobile phone batteries in the consumer electronics field, we have formed a mature standardized design solution. The production cycle from receiving the order to completion is 30% - 40% shorter than that of non - standardized designs, and the cost is reduced by 20% - 30%.

3. Production Process Improvement

3.1 Production Process Optimization

We continuously carry out refined management and optimization of the production process of FPC flex cables. By introducing advanced production management systems, we monitor and analyze data in real - time for every link from raw material procurement, production processing to finished product inspection. For example, in the etching process, according to the thickness of the copper foil and circuit design requirements, we accurately control the concentration, temperature, and etching time of the etching solution to ensure the etching effect while reducing the waste of the etching solution and product scrap caused by over - etching or under - etching. Through such process optimization, our production efficiency has increased by 25% - 35%, and the scrap rate has decreased by 10% - 15%, effectively reducing production costs.

3.2 Automated Production

Actively promoting automated production is an important measure to reduce costs and ensure performance. Huaruixin Electronics has invested a large amount of capital in introducing advanced automated production equipment, such as high - precision chip - mounters and automatic detection equipment. Automated equipment can not only improve production accuracy and consistency, reduce product quality problems caused by human factors, but also greatly increase production speed. For example, in the component - mounting process of FPC flex cables, the mounting speed of automated chip - mounters is 5 - 8 times that of manual mounting, and the mounting accuracy is higher, meeting the requirements for more precise component mounting while reducing labor costs and rework costs caused by manual operation errors.

3.3 Quality Control and Inspection

Strict quality control and inspection are the basis for ensuring the performance of FPC flex cables and are also closely related to costs. We have established a complete quality control system, with strict standards and processes for raw material incoming inspection, inspection of each process during production, and final inspection of finished products. Through advanced testing equipment such as X - Ray detectors and electron microscopes, we accurately detect key indicators of FPC flex cables, such as circuit integrity, connection reliability, and insulation performance. Timely discovery and resolution of quality problems can avoid a large number of rework or scrap caused by unqualified product quality, thus reducing production costs. Our product first - pass yield rate has reached over 98%, effectively controlling costs while ensuring high - performance products.

Success Case

One of our customers in the automotive electronics industry required a large number of FPC flex cables for in - car infotainment systems. The original design had high costs due to excessive use of high - end materials and complex designs. We proposed a comprehensive solution: in material selection, we replaced some high - cost materials with more cost - effective alternatives without affecting performance; in design, we optimized the circuit layout and reduced the number of vias; in production, we improved the process and increased automation. As a result, we reduced the cost of each FPC flex cable by 25% while ensuring that all performance indicators met or exceeded the original requirements. The customer was very satisfied and increased their order volume.
