PCB Silk Screen Can Be Printed as Different Functions

May 15,2024

Share

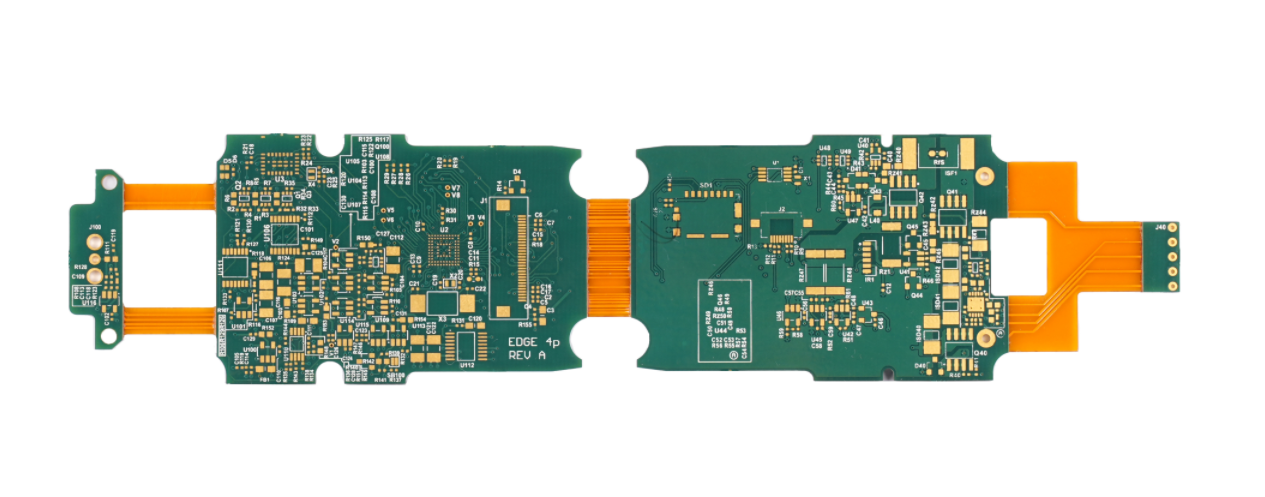

Silk screen, also known as legend or overlay, plays a critical role in both the design and manufacturing processes of printed circuit boards (PCBs). Its primary function is to provide necessary identification and documentation information, which facilitates the assembly, testing, and overall handling of the board. This blog post delves into the key roles that silk screen serves for both PCB designers and PCB manufacturers, breaking down its functions into two major categories: identification and record-keeping.


Identification: Streamlining PCB Design and Manufacturing


One of the most significant roles of the silk screen layer is to provide clear identification for both the PCB designer and the manufacturer.


For PCB Designers:

The silk screen layer allows designers to include essential details on the board, which aids in both the assembly and verification of the design. These details include:

· Part Number (P/N): The P/N helps to uniquely identify the board design. This number is especially useful for differentiating similar designs or specific variations of a product.

· Component Symbols and Logos: These graphical symbols mark the placement and orientation of components on the board, helping the assembly process run smoothly. Including a company logo is also a common practice for branding and intellectual property purposes.

· Assembly Remarks and Instructions: For complex designs, the silk screen can also include important assembly information, such as the specific method to be used or warnings about sensitive components.

· Component Codes: Silk screen markings often feature unique alphanumeric codes for each component on the PCB, such as resistors, capacitors, and ICs. These codes facilitate quick and easy identification, ensuring the correct components are placed in the correct locations during assembly.


For PCB Manufacturers:

For manufacturers, the silk screen provides another layer of essential information required for smooth production and traceability:

· Manufacturing P/N: Manufacturers often add their own part numbers to identify specific production versions, ensuring that any revisions or optimizations made during the manufacturing process are documented and tracked.

· UL Logo and Certifications: In many cases, PCBs must comply with safety standards, such as Underwriters Laboratories (UL) certification. Silk screens provide space to display these certification logos, confirming that the board meets the necessary safety requirements.

· Serial Numbers: Unique serial numbers are frequently included on the silk screen layer, enabling manufacturers to track individual boards through production and into the market. This becomes crucial for quality control, after-sales service, and warranty purposes.




Record-Keeping: Documenting the PCB Lifecycle


In addition to its identification role, the silk screen layer also serves as a record of both the design and manufacturing history. This helps streamline communication between PCB designers, manufacturers, and even clients, ensuring clarity at every stage.


For PCB Designers:

· Version of Design: Including the design version on the silk screen is vital, especially in long-term projects where multiple revisions of the same PCB design are produced. Each version may introduce new features or optimizations, and marking these on the silk screen helps to avoid confusion between different iterations.

· Date of Design Completion: Another useful addition is the date when the design was finalized. This serves as a timestamp for tracking the lifecycle of the PCB design, from prototype development through to mass production.


For PCB Manufacturers:

· Manufacturing Date Code: The manufacturing date is another critical aspect recorded on the silk screen. This provides a clear reference for when the board was produced, which is particularly important in cases of warranty claims, returns, or recalls.

· Manufacturing Version: Just like designers, manufacturers also need to keep track of the versions of a PCB. Sometimes, minor adjustments are made during the manufacturing process to improve yield or quality. Recording these versions on the silk screen ensures that both parties can clearly communicate which iteration of the board is being used.


Silk screens on PCBs are far more than just aesthetic features—they provide crucial identification and record-keeping functions that ensure smooth collaboration between designers and manufacturers. For designers, the silk screen enables the clear and organized presentation of essential details, such as part numbers, symbols, and component codes. For manufacturers, the silk screen serves as a roadmap for production, ensuring that key information like manufacturing numbers, certifications, and serial numbers are readily available.


With these roles in mind, it’s evident that the silk screen is a vital element in the lifecycle of a PCB, contributing to efficiency, traceability, and quality control from design to end-product.
