In the domain of FPC (Flexible Printed Circuit) circuit board design and production, noise reduction is a pivotal concern that can significantly impact the performance and functionality of the end - product. As a design engineer, understanding how to mitigate noise from various aspects is crucial. This blog will delve into the strategies for noise reduction, common pitfalls to avoid, selection considerations, and present some successful design cases. Shenzhen Huaruixin Electronics Co., Ltd., a professional FPC manufacturer with extensive experience, welcomes both new and existing customers to engage in discussions and knowledge sharing.

I. Noise Reduction Strategies in FPC Design and Production

A. Material - based Noise Reduction

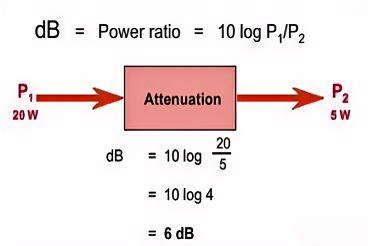

1. 1. Substrate Selection: The choice of substrate material plays a fundamental role. Materials with low dielectric constant (εr) and low dissipation factor (tan δ) are preferred. For example, polyimide (PI) substrates are commonly used due to their ability to reduce signal attenuation and electromagnetic wave propagation losses. A lower εr minimizes the capacitance between conductors, reducing crosstalk and associated noise.

2. 2. Conductive Material Quality: High - quality copper foils are essential. The roughness and purity of the copper can affect signal integrity. Rolled copper foils often exhibit better performance in terms of lower resistance and more stable electrical properties compared to other types. This helps in reducing ohmic losses and thermal noise during signal transmission.

3. 3. Insulation Layer Optimization: The insulation layer between conductive layers should have excellent dielectric properties. Materials like polyethylene terephthalate (PET) with high breakdown voltage and low permittivity can prevent electrical field leakage and interference between adjacent conductors, thereby reducing noise.




B. Circuit Layout and Routing for Noise Mitigation

1. 1. Partitioning and Isolation: Divide the circuit layout into different functional blocks such as analog, digital, and power supply areas. This separation minimizes the coupling of noise between different types of circuits. For instance, keep high - speed digital circuits away from sensitive analog circuits to prevent electromagnetic interference (EMI) caused by the fast - changing digital signals from affecting the analog signals.

2. 2. Signal Routing Principles: When routing signals, follow the shortest path possible to reduce signal propagation delay. Avoid creating loops in the signal path as they can act as antennas and pick up external electromagnetic noise. For high - speed signals, ensure that the impedance of the transmission lines is matched to the source and load impedance to prevent signal reflections, which can cause noise and signal distortion.

3. 3. Grounding and Power Plane Design: Implement an effective grounding strategy. Single - point grounding can be suitable for low - frequency circuits to avoid ground loop currents. In high - frequency applications, multi - point grounding is often preferred to reduce the inductance of the ground path. Additionally, design the power plane carefully to provide stable power distribution and minimize power - related noise. Separate power planes for different voltage domains can prevent crosstalk between power supplies.




C. Shielding and Filtering Techniques

1. 1. Electromagnetic Shielding: Incorporate shielding measures to protect the FPC from external electromagnetic fields. This can involve using conductive enclosures or adding shielding layers on the FPC. For example, a copper - clad layer on the outer surface of the FPC, properly grounded, can effectively block external EMI. Shielding is particularly crucial for circuits operating in noisy environments or handling weak signals.

2. 2. Filtering Components: Integrate appropriate filtering components such as capacitors, inductors, and ferrite beads. Decoupling capacitors placed near integrated circuits can filter out high - frequency noise in the power supply lines. Inductors and ferrite beads can be used to suppress common - mode and differential - mode noise in signal lines.




D. Component Selection and Placement

1. 1. Low - Noise Components: Opt for components with low inherent noise characteristics. For example, choose low - noise operational amplifiers, voltage regulators, and other active components. When selecting these components, consider parameters such as noise figure, equivalent input noise voltage, and output noise current.

2. 2. Component Placement: Position components strategically to minimize noise coupling. Place high - power and noisy components away from sensitive ones. For example, locate switching regulators at a sufficient distance from analog - to - digital converters (ADCs) to prevent switching noise from interfering with the ADC's input signal.




II. Common Mistakes to Avoid in Noise Reduction

A. Neglecting Material Compatibility

Ensure that all materials used in the FPC, including adhesives, substrates, and conductive inks, are chemically compatible. Incompatible materials can lead to delamination, poor adhesion, or changes in electrical properties over time, which can introduce noise. For example, some adhesives may outgas or react with the substrate under certain conditions, affecting the performance of the FPC.

B. Inadequate Grounding Practices

Improper grounding is a common source of noise problems. Ground loops can occur when there are multiple paths for ground current, leading to interference. Additionally, insufficient grounding connections or using long, thin ground wires can increase the ground impedance, causing voltage drops and noise. It is essential to plan the grounding system carefully based on the circuit's frequency and power requirements.

C. Overlooking Signal Integrity in Routing

Ignoring signal integrity issues during routing can result in significant noise problems. This includes not considering impedance matching, creating sharp corners in signal lines (which can cause signal reflections), and routing high - speed and low - speed signals too close together. Each of these factors can lead to crosstalk, signal distortion, and increased noise levels.

D. Poor Shielding Implementation

Incorrectly designed or installed shielding can be ineffective or even exacerbate noise issues. Gaps in shielding enclosures, improper grounding of the shielding layer, or using shielding materials with insufficient conductivity can allow electromagnetic fields to penetrate and interfere with the FPC. It is crucial to ensure that the shielding is properly designed and integrated into the overall FPC design.

E. Incorrect Component Selection and Placement

Selecting components without considering their noise performance or placing them inappropriately can increase the overall noise of the circuit. Using components with high noise figures in sensitive applications or positioning noisy components near critical signal paths can lead to degraded performance.

III. Selection Considerations for Noise - Reduced FPC Design

A. Supplier Evaluation

When choosing an FPC manufacturer, consider their experience and reputation in producing low - noise FPCs. Shenzhen Huaruixin Electronics Co., Ltd., for example, has a proven track record in this regard. Look for manufacturers with advanced production techniques, quality control processes, and the ability to handle custom designs for noise reduction.

B. Material Quality and Specifications

Request detailed information about the materials used in the FPC. Ensure that the materials meet the required electrical and mechanical specifications for low - noise performance. This includes verifying the dielectric properties of the substrate, the quality of the copper foil, and the performance of the insulation and adhesive materials.

C. Customization Options

Opt for a supplier that offers customization capabilities to tailor the FPC design to your specific noise - reduction requirements. This may involve custom circuit layouts, unique shielding designs, or the use of specialized materials. Customization allows for more precise control over noise - related factors in the FPC design.

IV. Successful Design Cases in Noise - Reduced FPCs

A. Medical Monitoring Device FPC

In a medical monitoring device, such as a patient - worn ECG (electrocardiogram) monitor, noise reduction was of utmost importance. The design team at Shenzhen Huaruixin Electronics Co., Ltd. developed an FPC with a specialized PI substrate with a low dielectric constant. The circuit layout was carefully partitioned to separate the analog ECG signal - processing circuits from digital control circuits. Shielding was implemented using a copper - clad layer around the FPC, which was grounded at multiple points to effectively block external EMI from the hospital environment. The signal lines were routed with impedance - matching techniques, and low - noise components were selected for the analog front - end. As a result, the ECG signals had a high signal - to - noise ratio, enabling accurate and reliable patient monitoring.

B. High - End Audio Equipment FPC
