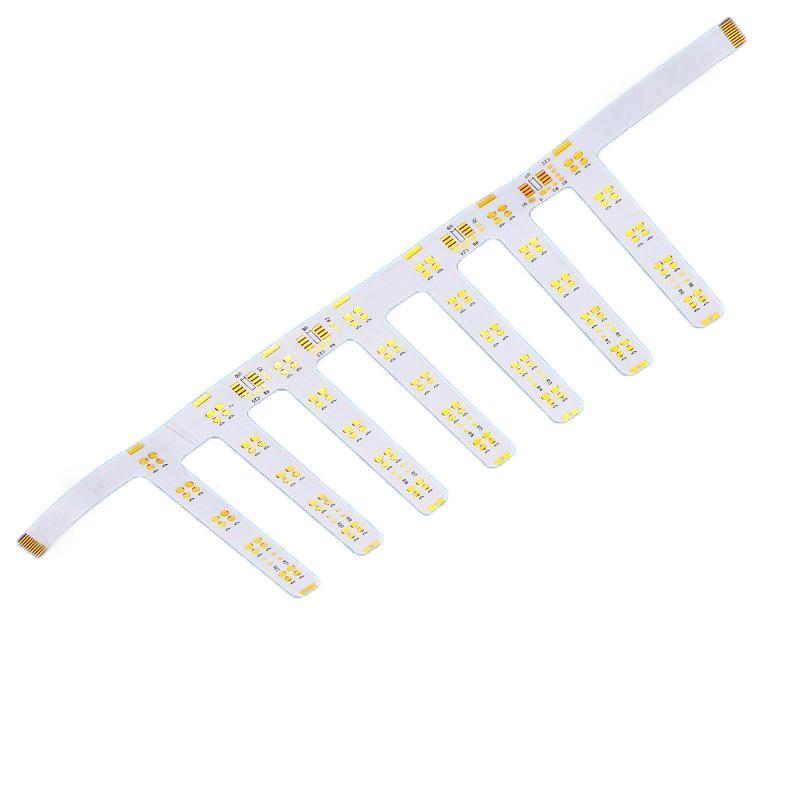

In the dynamic realm of manufacturing Flexible Printed Circuit (FPC) strip boards for lighting applications, a series of critical factors must be meticulously considered. As a leading and professional FPC manufacturer, Shenzhen Huaruixin Electronics Co., Ltd. has not only recognized these challenges but has also developed innovative and effective strategies to address them. Let's take an in - depth look at these key aspects.

1. Material Selection

Key Considerations

Base Film: The selection of the base film serves as the cornerstone of FPC strip board production. Polyimide (PI) film stands out as the top choice due to its remarkable heat - resistant properties. Given that LED lighting inevitably generates heat during operation, a high - quality PI film is essential. It can endure the thermal stress exerted during the FPC's service life, thereby ensuring the long - term stability and reliability of the strip board.

Copper Foil: The thickness and quality of the copper foil play a pivotal role in determining the electrical conductivity of the FPC. For high - power LED applications, where substantial electrical current needs to be transmitted, a thicker copper foil, such as 18μm or 35μm, becomes a necessity. This thickness helps to significantly reduce resistance and power loss, optimizing the overall performance of the circuit.

Huaruixin's Approach

At Shenzhen Huaruixin Electronics Co., Ltd., we have an in - depth and profound understanding of material properties. We establish long - term partnerships with reliable and renowned suppliers to source top - grade PI films. Before these materials enter our production line, they undergo strict incoming inspections to guarantee their quality. Similarly, for copper foils, we prioritize products with outstanding conductivity and stability. Throughout the production process, regular quality checks are carried out to maintain consistent product performance, ensuring that each FPC strip board meets the highest standards from the very start.

2. Circuit Design

Key Considerations

Layout Optimization: The layout of the circuit on the FPC strip board is a critical factor that demands careful planning. To minimize signal interference and heat accumulation, a well - thought - out layout is essential. Separating power lines from signal lines, for instance, is an effective strategy to prevent electromagnetic interference (EMI). This separation ensures that the electrical signals can be transmitted accurately without being distorted by external electromagnetic fields.

Thermal Design: Given the heat - generating nature of LEDs, proper thermal design is non - negotiable. The design of thermal vias and heat - dissipation areas is crucial. Thermal vias act as efficient heat conductors, transferring the heat generated by LED chips to the heat sink. This transfer improves the overall thermal management of the FPC, preventing overheating and ensuring the long - term performance and lifespan of the LEDs.

Huaruixin's Approach

Our professional design team is equipped with the latest and most advanced CAD software. This software allows us to conduct comprehensive simulations and optimizations of the circuit layout. We also perform in - depth thermal simulations to ensure that the designed thermal vias and heat - dissipation areas can effectively handle the heat generated by LEDs. By adopting this proactive and data - driven approach, we are able to produce FPC strip boards with superior thermal and electrical characteristics, meeting the high - performance requirements of modern lighting applications.

3. Manufacturing Process

Key Considerations

Precision Etching: Precision etching is the heart of forming accurate circuit patterns on the FPC strip board. Even the slightest deviation in the etching process can lead to serious consequences, such as short - circuits or open - circuits. These issues can render the FPC strip board non - functional, highlighting the importance of maintaining strict control over the etching process.

Plating Quality: The plating process, especially techniques like electroless nickel immersion gold (ENIG), requires meticulous control. High - quality plating not only improves the solderability of the FPC but also enhances its corrosion resistance. This protection ensures the long - term durability of the FPC strip board in various operating environments.

Huaruixin's Approach

We have invested in state - of - the - art manufacturing equipment to ensure the highest level of precision etching. Our experienced operators are trained to strictly adhere to the established process parameters, guaranteeing the accuracy of the circuit patterns. For the plating process, we have implemented a dedicated and comprehensive quality control system. This system continuously monitors the thickness and quality of the plating layers, ensuring that every FPC strip board leaving our factory meets the most stringent industry standards.

4. Quality Control

Key Considerations

Electrical Testing: Comprehensive electrical testing, including open - circuit and short - circuit tests, is an indispensable part of the quality control process. These tests are crucial for detecting any potential electrical defects that could affect the functionality of the FPC strip board.

Visual Inspection: Visual inspection serves as an important complementary method. It helps to identify surface - level defects such as scratches, delamination, or improper soldering. These defects, if left undetected, can also lead to performance issues or a shorter lifespan of the FPC strip board.

Huaruixin's Approach

Shenzhen Huaruixin Electronics Co., Ltd. has established a multi - stage and rigorous quality control system. After the manufacturing process is complete, we conduct 100% electrical testing using automated and highly accurate testing equipment. In addition, our team of experienced quality inspectors conducts detailed visual inspections. This dual - approach ensures that each FPC strip board meets the highest quality requirements, providing our customers with reliable and high - performance products.

We sincerely welcome new and old friends in the FPC industry to engage in communication and discussion with us. By sharing our experiences and insights, we can work together to drive the continuous development and innovation of the FPC industry.
