When it comes to manufacturing Printed Circuit Boards (PCBs), ensuring quality is crucial for the reliability and performance of the end product. The industry relies heavily on IPC standards, which establish stringent guidelines to ensure PCB quality across various applications. Two key specifications, IPC-6013 and IPC-6012, play a significant role in defining the quality levels for Flexible Printed Circuits (FPC) and traditional PCBs, respectively.

IPC Standards and Classifications

IPC, the global association for electronics manufacturing, has divided the quality levels for PCBs into three main categories based on the intended application. These categories help manufacturers align the performance and durability of their PCBs with customer requirements:

Class 1: Designed for consumer electronics and general-use products, such as household appliances and electronic peripherals. These PCBs are sufficient for applications where performance isn’t mission-critical.

Class 2: Targeted at high-performance electronic products, including communication devices and commercial equipment. This class is often regarded as the standard for most PCBs, striking a balance between cost and quality.

Class 3: Aimed at high-reliability applications, such as military, aerospace, and medical devices. PCBs in this category undergo the strictest quality control procedures and are designed for long-term, reliable performance under harsh conditions.

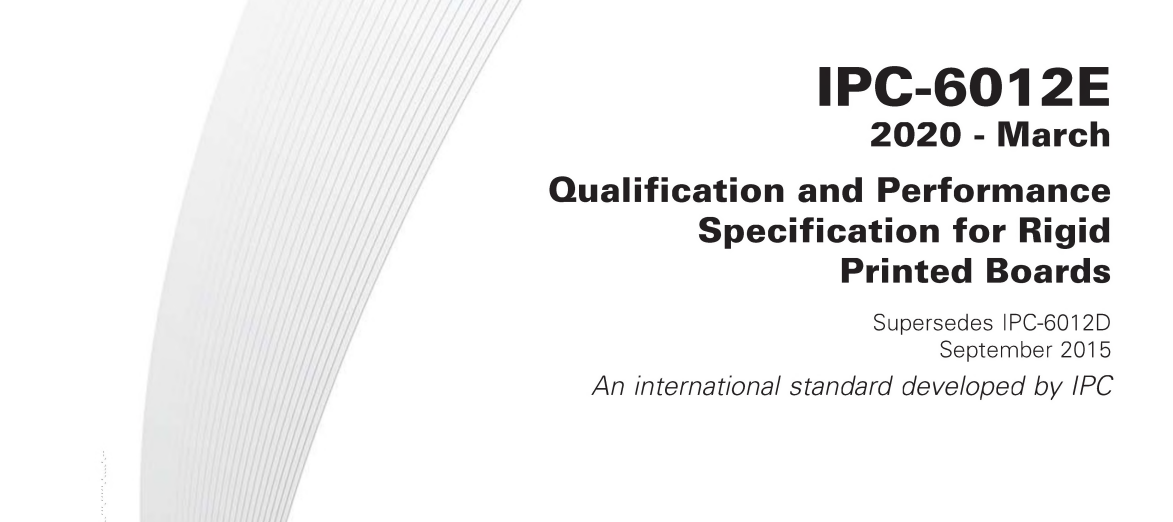

If a customer does not specify a particular class, Class 2 is typically followed in accordance with the IPC-6012 standard. For instance, ExPlus adheres to this standard to ensure its PCBs meet the required performance and quality benchmarks.

Key Criteria for High-Quality PCBs

To guarantee high-quality PCBs, several factors need to be carefully controlled during manufacturing:

1. Trace Width, Thickness, and Spacing: The PCB’s traces, or conductive pathways, must adhere to the customer’s specifications to prevent issues like trace heating, open circuits, or short circuits. These parameters are critical for ensuring the board’s reliability, especially in high-performance applications.

2. Copper Adhesion: The copper on the outer layer of the PCB should be securely bonded to prevent delamination or oxidation. Oxidation can lead to rapid degradation of the PCB, reducing its lifespan and causing premature failures.

3. Mechanical Integrity: PCBs must be resistant to deformation during installation and use. Deformations can misalign screw holes and lead to poor assembly, which can ultimately affect the product’s performance. Maintaining precise positioning of holes and traces is vital to ensure compatibility with enclosures or mounting hardware.

4. Environmental Durability: High-quality PCBs should withstand extreme environmental conditions such as high temperature and humidity without compromising their performance. Additionally, they must not emit electromagnetic radiation that could interfere with other electronics.

5. Surface Performance: The surface of the PCB must be suitable for subsequent installation processes, including soldering, component placement, and assembly.

Testing and Inspection

The quality of PCBs is verified through a combination of electrical and visual testing methods. For small production runs, flying probe testing is typically used, which checks for open and short circuits without the need for costly fixtures. For mass-produced PCBs, specialized testing fixtures are employed to efficiently test a large volume of boards.

In addition to electrical testing, visual inspections are crucial. Technicians check for any flaws in the PCB’s appearance, including characters, solder mask integrity, beveling, hole breaks, and the precision of V-CUT lines. These inspections help ensure that the PCBs meet design specifications and are free from defects that could affect performance.

In summary, adhering to IPC standards is essential for delivering high-quality PCBs. Whether the product is a simple consumer device or a high-reliability military application, following the right IPC classification and ensuring strict quality control measures will help manufacturers meet customer expectations and build products that last. With the combination of precise manufacturing, thorough testing, and environmental considerations, companies like ExPlus can ensure that their PCBs consistently deliver reliable performance.

If you would like to receive the complete IPC testing standard document, please contact us at sales@hrxfpc.com.
