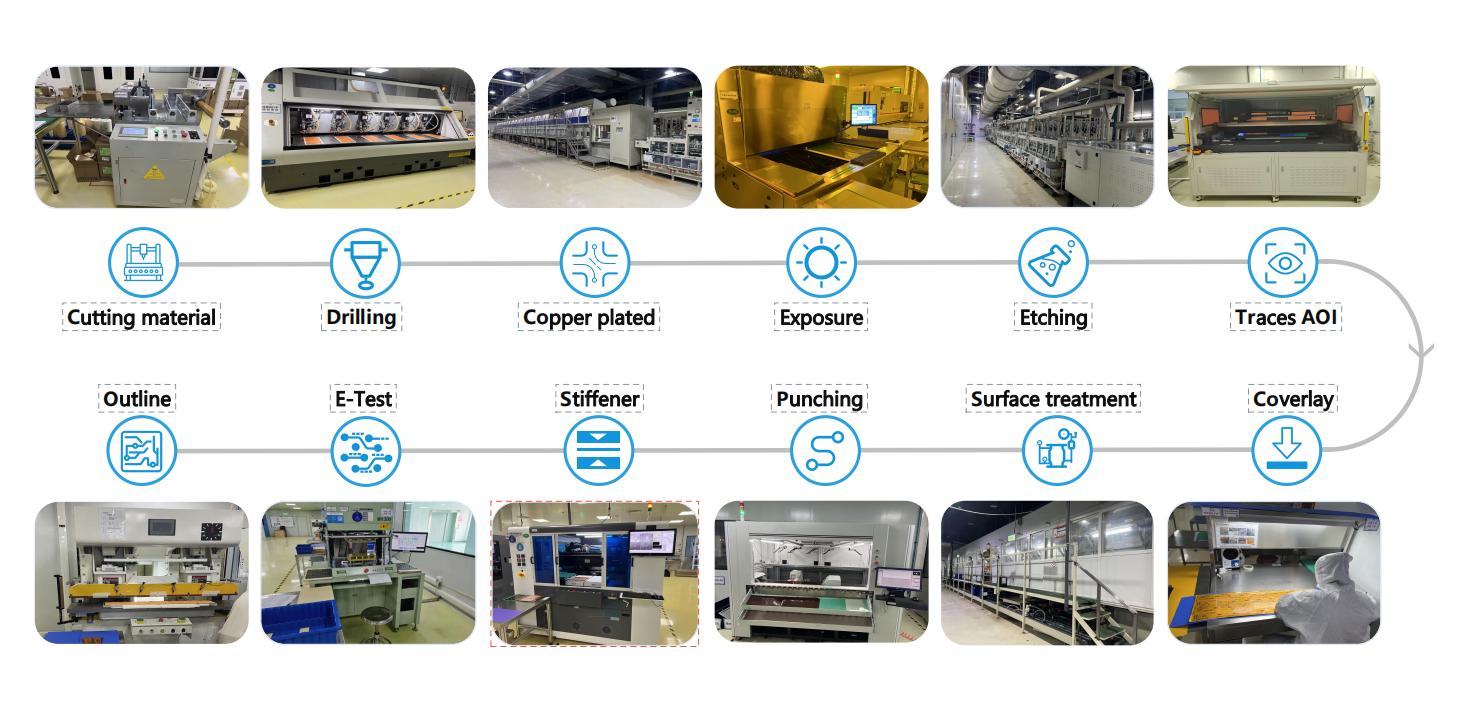

Flex PCB are essential components in modern electronics due to their flexibility, lightweight, and space-saving properties. The manufacturing process involves several precise steps to ensure high-quality and reliable FPCs. Here is a brief overview of the key stages:

1. Cutting Material: The first step involves cutting the base material (usually a polyimide film) to the desired size and shape using precision cutting tools.

2. Drilling: Holes are drilled in the material to create vias and mounting holes. These holes are crucial for electrical connections and mechanical stability.

3. Copper Plated: The drilled holes are electroplated with copper to ensure good electrical conductivity and to form the basis for the circuit traces.

4. Exposure: The FPC panel is exposed to UV light through a photomask to define the circuit pattern. This step hardens the photoresist in the areas where the circuit traces will be formed.

5. Etching: Unexposed areas of the copper layer are removed using a chemical etching process, leaving behind the defined circuit traces.

6. Traces AOI: Automated Optical Inspection (AOI) is used to inspect the circuit traces for defects such as breaks, shorts, or misalignments.

7. Coverlay: A coverlay film is applied over the circuit traces to protect them from environmental factors and to insulate the circuits.

8. Surface Treatment: The surface of the FPC is treated to improve solderability and protect the copper traces from oxidation. Common treatments include HASL (Hot Air Solder Leveling) and ENIG (Electroless Nickel Immersion Gold).

9. Punching: The FPC is punched to create the final shape and to remove any excess material. This step ensures the FPC fits precisely into its intended application.

10. Stiffener: Stiffeners are added to specific areas of the FPC to provide structural rigidity where needed, enhancing the overall performance and durability.

11. E-Test: Electrical testing (E-Test) is performed to verify the functionality of the FPC. This includes checking for continuity, resistance, and other electrical parameters.

12. Outline: The final outline of the FPC is created using a laser or die-cutting tool to ensure the exact dimensions and shape are achieved.

Each step in the FPC manufacturing process is critical to producing high-quality and reliable flexible circuits. By following these steps meticulously, manufacturers can ensure that FPCs meet the stringent requirements of modern electronic devices.
