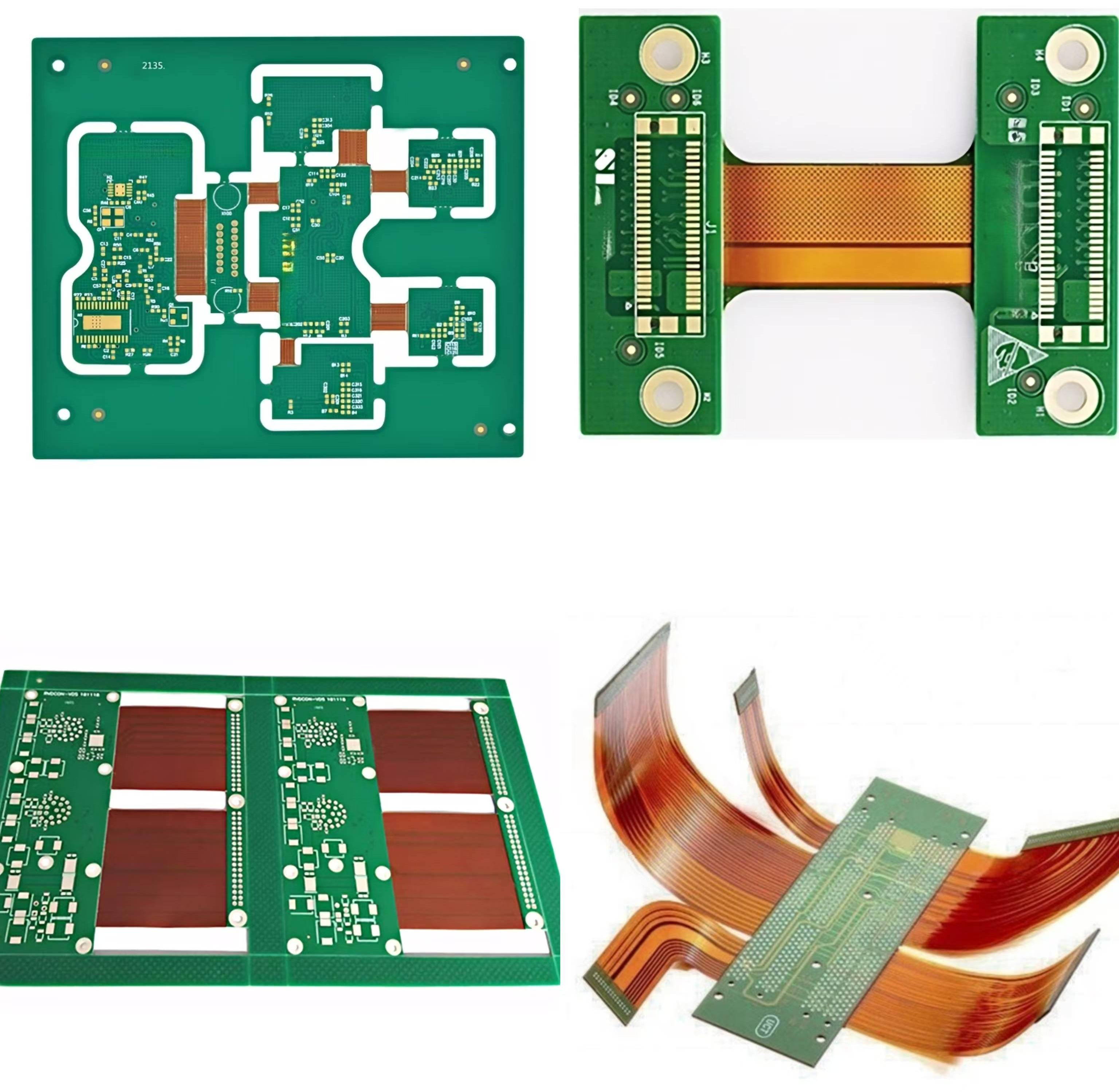

In the production process of rigid - flex boards, hot - air solder leveling (HASL) as a surface treatment method holds significant importance. Shenzhen Huaruixin Electronics Co., Ltd., a professional FPC production and sales company, is here to share comprehensive insights into the design and production considerations, along with the advantages and limitations of HASL.

Advantages of HASL

1. Excellent Solderability
HASL provides a highly solderable surface. The tin - lead alloy layer formed during the process ensures reliable soldering of components. It minimizes the occurrence of soldering defects such as cold joints and dry joints. This is crucial for a wide range of components, from small - sized surface - mount devices to larger through - hole components, making it suitable for various circuit designs.

2. Superb Protection
Copper surfaces on PCBs are prone to oxidation. The HASL - applied alloy layer effectively protects the copper from air and moisture, preventing oxidation and corrosion. This significantly extends the lifespan of the rigid - flex board, especially in environments with high humidity or corrosive elements.

3. Cost - effectiveness
Compared to some advanced surface treatment techniques like electroless nickel - immersion gold (ENIG) or immersion silver, HASL has relatively lower material costs. The processing is also relatively straightforward, making it ideal for high - volume production. It offers great value for projects with budget constraints while meeting basic performance requirements.

4. Good Detectability
The shiny tin surface after HASL stands out against the PCB substrate, facilitating visual inspection. Defects such as exposed copper or short circuits can be easily identified. This also benefits automated optical inspection (AOI), enhancing production efficiency and quality control.

5. Maturity of Process
HASL is a well - established surface treatment technology with a long history of application. Years of development and practice have led to a highly stable and mature process. Manufacturers can better control the production process, ensuring consistent product quality.

6. Compatibility
HASL is compatible with almost all types of PCB substrates, including common ones like FR - 4 and CEM - 3. It can be applied to single - sided, double - sided, and multi - layer boards, providing a suitable soldering surface for different circuit complexity levels.

Limitations of HASL

1. Poorer Surface Flatness
The nature of the HASL process can cause uneven distribution of solder on the PCB surface, affecting flatness. In high - density and fine - pitch circuit designs, this can lead to assembly and soldering difficulties. For example, solder balls may form during the assembly process, potentially causing short circuits in components with fine - pitch pins.

2. Lead Pollution Risk (in Lead - containing Processes)
Traditional HASL processes use tin - lead alloy solders, and lead is harmful to the environment and human health. Although lead - free HASL processes are available, the antioxidant ability of lead - free HASL surfaces is relatively weaker, and long - term reliability may be inferior to some other advanced processes.

3. Difficulty in Ensuring Thickness Uniformity
The thickness of the tin layer after HASL may vary across different positions on the PCB. This can impact the electrical performance and signal transmission quality of the circuit. In high - frequency or high - speed digital circuits with strict signal requirements, this non - uniformity can be a significant issue.

4. High Requirements for Process Parameter Control
HASL involves multiple critical parameters such as soldering temperature, hot - air knife temperature, hot - air knife pressure, immersion time, and lifting speed. Precise control of these parameters is essential as any deviation can lead to unstable product quality.

Design Considerations for HASL in Rigid - flex Board Production

1. Component - related Design
The design should consider the types of components to be mounted. For components with fine - pitch leads or those sensitive to heat, the HASL process needs to be carefully adjusted. In designs with high - density integrated circuits, the thickness of the solder layer must be controlled to prevent short circuits between adjacent leads. The design should ensure that the HASL process doesn't harm the functionality of these components.

2. Solder Mask Design Integration
The solder mask design must be coordinated with HASL. Only the areas requiring solder coating during HASL should be exposed. In complex rigid - flex board designs with multiple layers and functions, an accurate solder mask layout is necessary to achieve optimal HASL results. Otherwise, issues like excessive solder in some areas or insufficient coverage can occur.

3. Board Layout for Heat Management
Since HASL involves heating the board, heat distribution in the layout is crucial. Uneven heat can cause variations in solder thickness. In designs with large copper areas or heat - generating components, proper thermal vias and heat - spreading patterns should be incorporated. This ensures uniform heating during HASL, resulting in a consistent solder layer thickness and quality.

Production Considerations for HASL in Rigid - flex Board Production

1. Solder Alloy Selection
The choice of solder alloy is vital. Different alloys have different melting points, wetting properties, and compatibility with board materials. For applications in high - temperature environments, an alloy with higher melting point and better thermal stability should be chosen. The quality of the solder alloy directly affects the adhesion and durability of the solder layer after HASL.

2. Process Temperature and Time Control
Precise control of temperature and time during HASL is necessary. Excessive temperature or time can lead to problems like excessive solder accumulation, solder bridging between pins, or damage to the board and components. Insufficient temperature or time can result in poor solder wetting and incomplete coverage. Advanced temperature - controlled equipment and strict process monitoring are essential.

3. Pre - treatment and Cleaning
Before HASL, proper pre - treatment of the board surface is required to ensure good solder adhesion. This includes cleaning to remove contaminants, oxides, and residues. After HASL, thorough cleaning is also crucial to remove excess solder or flux residues that could affect board performance. In a cleanroom environment, specialized cleaning agents and equipment are used.

4. Quality Inspection
Rigorous quality inspection is an integral part of HASL production. Visual inspection under magnification can detect issues like solder thickness uniformity, solder bridging, and surface defects. X - ray inspection can identify hidden defects inside the board, such as voids or internal solder connections. Electrical testing should also be performed to ensure no short circuits or open circuits are caused by the HASL process.

Successful Design Cases

1. Industrial Control Rigid - flex Board
For an industrial control system project, Shenzhen Huaruixin Electronics designed a rigid - flex board with HASL surface treatment. Considering the various components like microcontrollers and power modules, the solder mask was carefully designed. The board layout was optimized for heat distribution. A high - melting - point solder alloy suitable for the high - temperature industrial environment was selected. Through precise control of HASL process parameters, along with thorough pre - treatment and cleaning, the resulting board had excellent solder quality. It has been operating reliably in the industrial control system, handling high - current and high - temperature conditions without any issues related to the HASL surface treatment.

2. Medical Equipment Rigid - flex Board
In a medical equipment application, our team designed a rigid - flex board with HASL. The design focused on the compatibility with sensitive medical components such as sensors and signal - processing chips. A specialized solder mask design protected these components during HASL. A solder alloy with good biocompatibility and low - toxicity was chosen. Strict temperature and time control during production, along with meticulous cleaning, were implemented. Quality inspections including visual, X - ray, and electrical tests ensured the board met the high - quality requirements of medical equipment. The board has been successfully used in the device, contributing to its accurate and stable operation.

In conclusion, understanding the advantages, limitations, and the design and production considerations of HASL in rigid - flex board production is crucial. At Shenzhen Huaruixin Electronics Co., Ltd., we are committed to providing high - quality products. We welcome new and old customers to communicate and exchange ideas with us as we strive to improve and optimize our production processes.
