Flexible Printed Circuits (FPCs) are revolutionizing Liquid Crystal Display (LCD) technology by addressing critical challenges in miniaturization, reliability, and connectivity. At Shenzhen Huaruixin Electronics Co., Ltd., our expertise in FPC/PCB/Rigid-Flex solutions has positioned us at the forefront of LCD innovation. Below, we explore how FPCs drive advancements in LCD screens, incorporating cutting-edge terminology and technical insights.

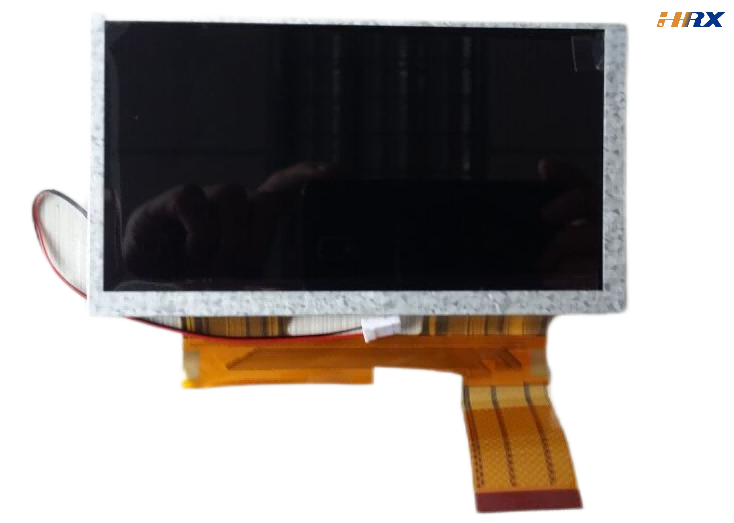

1. FPCs in LCD Panel Interconnects

The heart of LCDs lies in their ability to transmit signals between pixels, drivers, and controllers. FPCs excel here due to their ultra-thin profiles (≤0.03mm), high-density routing capabilities, and anisotropic conductive film (ACF) bonding:

TFT-LCD Panels: FPCs connect thin-film transistors (TFTs) to driver ICs via z-axis conductive adhesives, ensuring precise voltage control for pixel brightness.

Curved/Edge-to-Edge Screens: Roll-to-roll manufacturing processes enable flexible traces to accommodate curved LCDs in smartphones and automotive dashboards, eliminating rigid board limitations.

Multi-Display Systems: Our FPCs with EMI shielding (≥30dB attenuation) minimize crosstalk in dual-screen setups, such as foldable tablets.

2. Powering LCD Backlight Modules

LCDs require backlighting, and FPCs play a pivotal role in optimizing this process through thermally conductive materials and current management:

LED Array Integration: FPCs with micro-etch copper traces (≤50μm width) distribute power evenly to Mini-LED or Micro-LED arrays, enhancing brightness uniformity (ΔE < 2).

Thermal Management: Heat-resistant polyimide (PI) substrates with aluminum nitride (AlN) fillers dissipate heat from high-power backlights, preventing screen discoloration.

Thin-Bezel Design: Our single-sided FPCs with silver-coated polyimide films reduce the backlight module’s thickness to <0.5mm, enabling slimmer LCD TVs and monitors.

3. FPCs for LCD Driver Circuits

Drivers convert digital signals into analog voltage for LCD pixels. FPCs here leverage high-speed interconnects and miniaturized packaging:

High-Speed Signal Transmission: HDI FPCs with controlled impedance (50Ω ±10%) support 4K/8K resolution and 120Hz refresh rates without latency, compliant with HDMI 2.1 standards.

Chip-On-Flex (COF) Technology: By mounting driver ICs directly onto FPCs using flip-chip bonding, COF reduces display bezel size while improving signal integrity (≤0.5ns delay).

Cost-Effective Solutions: Our multi-layer FPCs with blind/buried vias lower material costs by 20% without compromising performance.

4. Emerging Trends in LCD-FPC Integration

As LCDs evolve, FPCs are adapting to new demands with next-generation materials and smart functionalities:

Rollable LCDs: Stretchable FPCs with elastomeric polyurethanes and carbon nanotube (CNT) traces enable rollable displays for futuristic devices like flexible smartphones.

Low-Power LCDs: Thin-film FPCs with graphene-enhanced copper reduce energy consumption by 30% in e-readers and smartwatches.

Transparent LCDs: Clear FPCs with indium tin oxide (ITO) coatings and polyethylene terephthalate (PET) substrates maintain display transparency while delivering power and signals.

Expert Insights from Huaruixin Electronics

Material Innovations: We’re developing hybrid FPCs combining PI and liquid crystal polymer (LCP) to enhance thermal stability (Tg > 280°C) in automotive LCDs.

Precision Manufacturing: Our ultraviolet (UV) laser drilling technology creates microvias (≤30μm) for high-density driver connections in medical-grade LCDs, compliant with IPC-2223 standards.

Sustainability Focus: Recyclable bio-based epoxy resins and lead-free soldering processes (RoHS/REACH compliant) reduce environmental impact in mass-produced LCDs.

Case Study: FPCs in Automotive LCDs

Modern cars use LCDs for dashboards, infotainment, and rear-seat displays. FPCs here must withstand extreme temperatures (-40°C to 85°C) and vibrations. At Huaruixin, we’ve engineered FPCs with reinforced edges and automotive-grade adhesives (UL 94 V-0 rating) to ensure long-term reliability. For example, our solutions power the curved LCDs in luxury vehicles, providing both aesthetics and durability through accelerated life testing (ALT) protocols.

Future Outlook

The LCD-FPC synergy will continue to drive advancements in smart home devices, industrial automation, and healthcare displays. At Huaruixin, we’re exploring self-healing FPCs with shape-memory polymers to extend LCD lifespan and AI-driven FPCs with embedded sensors for real-time display optimization.

Partner with Huaruixin Electronics

Whether you’re designing cutting-edge smartphones or large-scale digital signage, our customized FPC solutions can elevate your LCD performance. Visit www.hrxfpc.com or contact us at sales@hrxfpc.com to discuss your project.
