In the rapidly evolving field of electronics, Flexible Printed Circuit (FPC) boards have become an essential component in many modern devices. Their unique properties of flexibility, thinness, and high - density interconnection capabilities make them suitable for a wide range of applications, from smartphones and wearables to automotive electronics. This blog post will explore two crucial aspects of FPCs: material selection and performance optimization.

Material Selection for FPCs

The substrate is the foundation of an FPC. When choosing a substrate, flexibility, heat resistance, and electrical insulation are key factors. Polyimide (PI) is a popular choice due to its excellent flexibility, which allows FPCs to bend and twist without breaking. It also has high heat resistance, making it suitable for applications where the board may be exposed to elevated temperatures. Additionally, PI offers good electrical insulation properties, ensuring reliable signal transmission.

Copper Foil

Copper foil is used for conducting electricity in FPCs. There are two main types: rolled - annealed (RA) copper foil and electrolytic copper foil. RA copper foil has better flexibility and electrical conductivity, which is beneficial for applications that require frequent bending, such as in foldable displays. Electrolytic copper foil, on the other hand, is more cost - effective and is widely used in many standard FPC applications. The thickness of the copper foil also affects the performance of the FPC, with thinner foils being more suitable for applications where space is limited.

Coverlay Film

The coverlay film protects the circuit traces on the FPC. It needs to have good adhesion to the substrate and copper foil, as well as excellent insulation properties. Polyimide films are commonly used as coverlay films due to their high flexibility and chemical resistance. They can protect the FPC from environmental factors such as moisture, dust, and chemicals, ensuring the long - term reliability of the board.

Adhesive

The adhesive is used to bond different layers of the FPC together. A good adhesive should have strong adhesion, flexibility, and chemical resistance. Epoxy - based adhesives are often used in FPC manufacturing. They can provide strong bonding strength while still allowing the FPC to be flexible. However, it's important to ensure that the adhesive does not affect the electrical properties of the FPC.

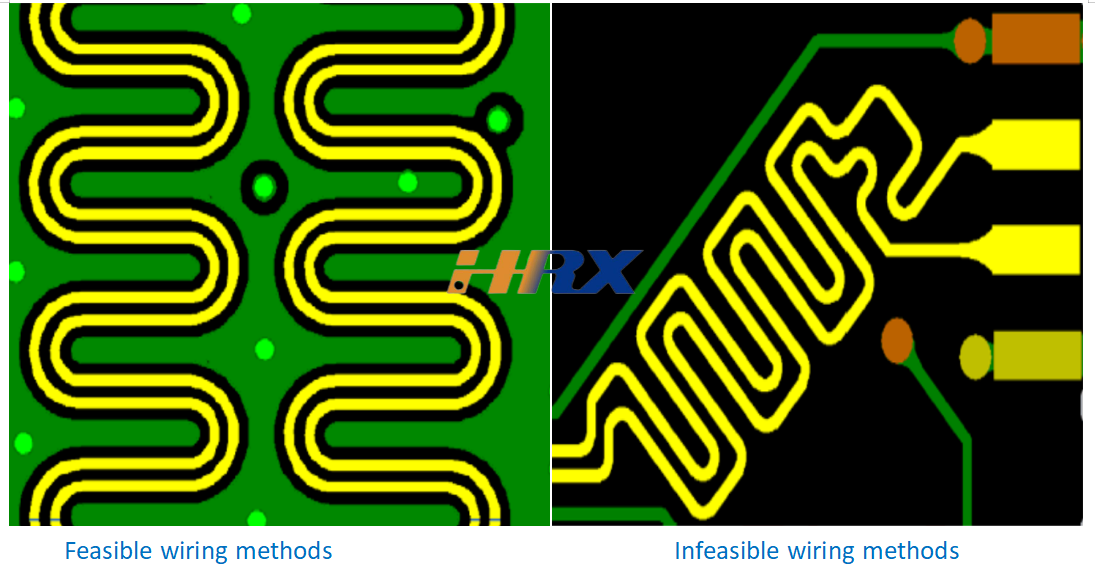

A well - designed circuit layout is crucial for the performance of an FPC. When optimizing the circuit layout, factors such as signal integrity, power distribution, and thermal management need to be considered. For example, minimizing the length of high - speed signal traces can reduce signal attenuation and interference. Separating power and ground planes can improve power distribution and reduce electromagnetic interference (EMI).

Adopting a fine manufacturing process is essential for improving the performance of FPCs. This includes using advanced lithography techniques to achieve finer line widths and spaces, precise etching processes to ensure accurate circuit patterns, and high - quality soldering techniques to ensure reliable electrical connections. Quality control during the manufacturing process is also crucial to identify and eliminate any potential defects.
