Material Durability

The choice of materials significantly impacts the durability of the handle cable. For the conductor, materials like high - purity copper are preferred due to their excellent electrical conductivity and relatively high tensile strength. Copper can withstand the mechanical stress during normal use without breaking or suffering a significant drop in conductivity. The insulation material, such as fluoropolymer, offers good chemical resistance and high - temperature stability. It can protect the conductors from environmental factors like moisture and chemicals that could otherwise corrode the cable over time.

Mechanical Design

Trace Geometry: The design of the traces on the FPC is crucial. Traces should be designed with a sufficient width and thickness. A wider trace can carry more current and is less likely to break under stress. Additionally, rounded corners on the traces are better than sharp corners. Sharp corners can act as stress concentrators, leading to cracks in the traces during bending or vibration. By using software - aided design tools, we can optimize the trace geometry to enhance durability.

Reinforcement Structures: Incorporating reinforcement structures in the FPC design can also improve durability. For example, adding a layer of Kevlar or fiberglass reinforcement in areas prone to high stress, such as near the connection points of the handle, can increase the overall strength of the cable. These reinforcement materials have high tensile strength and can help distribute stress more evenly across the FPC.

Flexibility Design

Bend Radius Optimization: As mentioned before, the bend radius is a critical factor. To ensure durability, we not only conduct bending tests but also design the FPC in a way that the natural bending of the handle during use does not exceed the safe bend radius of the cable. This may involve designing the cable routing in the handle to follow gentle curves rather than sharp bends.

Flex Zones: Designating specific flex zones on the FPC can also enhance durability. These flex zones are areas where the FPC is designed to bend repeatedly. By using materials with high - flexibility properties in these zones and carefully controlling the layer stack - up, we can ensure that the cable can withstand a large number of bending cycles without failure.

Environmental Considerations

Temperature Resistance: Gaming devices can generate heat during extended use. The handle cable should be designed to withstand the temperature range it may encounter. Using materials with high - temperature resistance, such as polyimide films in the FPC construction, ensures that the cable does not deform or lose its electrical properties under high - temperature conditions.

Moisture Protection: Moisture can be a threat to the durability of the cable. We can design the FPC with a moisture - resistant coating or use materials that are not easily affected by moisture. Additionally, proper sealing at the connection points of the cable can prevent moisture from infiltrating and causing corrosion or short - circuits.

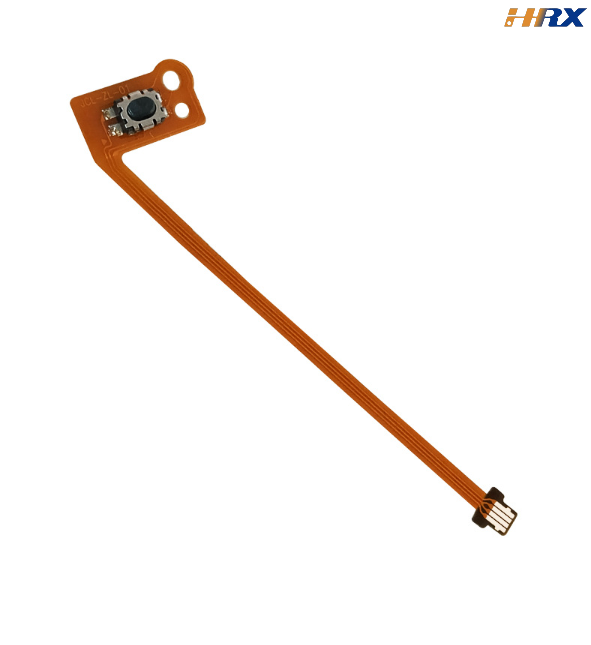

By considering these aspects in the design process, we at Shenzhen Huaruixin Electronics Co., Ltd. can ensure that the Switch handle SRSL FPC and related cables are highly durable, providing a reliable gaming experience for users.
