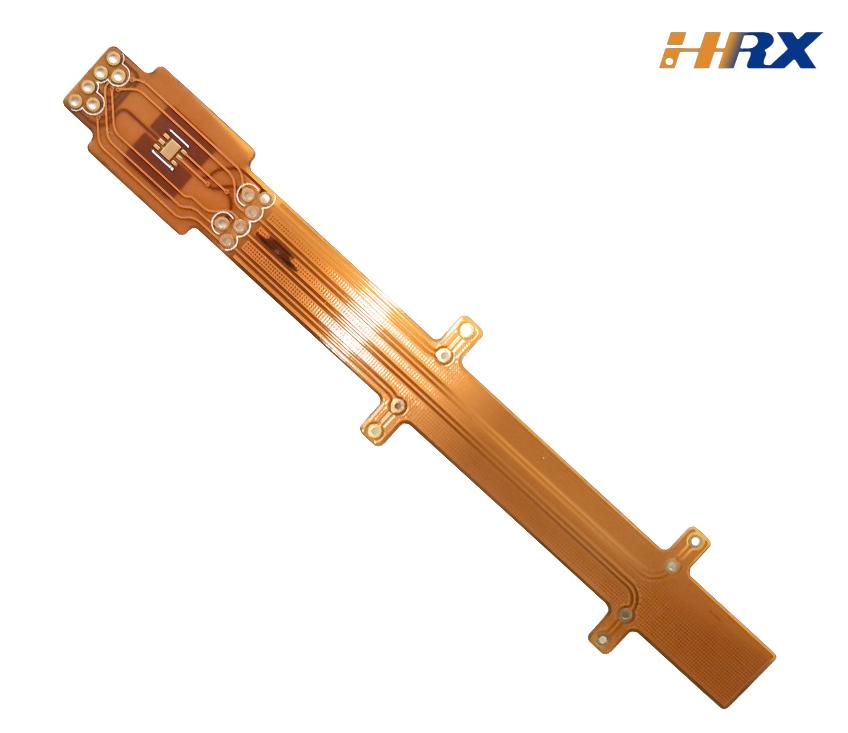

Copper foils used in FPC (Flexible Printed Circuit) materials are classified into several types, each with distinct functions, advantages, and disadvantages. Here is a detailed breakdown:

1.Types of Copper Foils

Electrodeposited Copper Foil (ED Copper Foil)

Produced via an electroplating process, it features a highly dense and uniform surface structure. This type is a common choice in the FPC manufacturing industry due to its well - controlled production process.

Rolled Copper Foil (RA Copper Foil)

Manufactured through a rolling process. It can be further categorized into high - purity rolled copper foil and oxygen - free rolled copper foil, depending on the materials and production techniques. In the context of FPCs, rolled copper foil is often associated with high - end applications.

Annealed Copper Foil

Obtained by annealing the previously mentioned copper foils at high temperatures. This process modifies the internal crystal structure, enhancing certain properties crucial for FPC performance.

2.Functions of Different Types of Copper Foils

Electrodeposited Copper Foil

Superior Electrical Conductivity: It efficiently transmits electrical signals, making it suitable for high - speed signal transmission applications in the FPC realm, such as in high - frequency circuit boards. In the global FPC market, this property is highly sought - after for 5G communication - related FPC designs.

High Adhesion: It adheres strongly to the FPC substrate. This characteristic ensures the stability and reliability of circuit connections, reducing the risk of delamination, which is a key concern in FPC manufacturing.

Rolled Copper Foil

Exceptional Flexibility: It offers outstanding flexibility, capable of withstanding repeated bending and folding without breaking or cracking. This makes it ideal for FPC applications that demand frequent deformation, like those in wearable electronics, a rapidly growing segment in the FPC industry.

High Tensile Strength: It can maintain the integrity of the circuit structure under external forces, providing excellent mechanical properties. This is crucial for FPCs used in harsh environments.

Annealed Copper Foil

Enhanced Ductility: The annealing process imparts greater ductility to the copper foil, further improving its resistance to deformation and stress. This reduces the likelihood of cracks during FPC processing and usage, especially in applications with complex bending requirements.

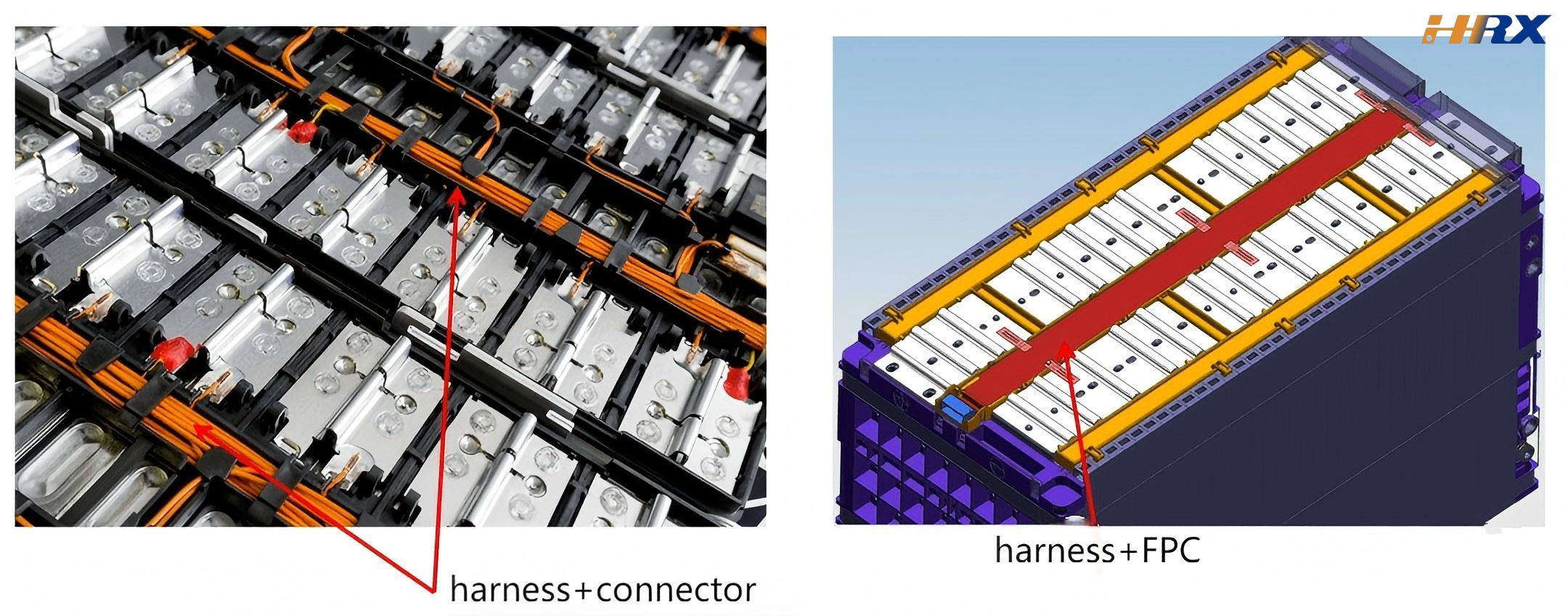

Stable Electrical Performance: It ensures stable electrical conductivity, guaranteeing the consistent operation of circuits across diverse environments and working conditions, which is essential for FPCs in automotive electronics, another major application area.

3.Advantages and Disadvantages of Different Types of Copper Foils

Electrodeposited Copper Foil

Advantages: High production efficiency allows for cost - effective manufacturing. The thickness and surface quality are highly controllable, enabling easy customization to meet various design requirements in FPC production. This makes it a popular choice for mass - produced FPCs.

Disadvantages: Compared to rolled copper foil, its flexibility and tensile strength are relatively lower. In applications demanding extreme flexibility, it may be more prone to damage, limiting its use in some high - end, high - flexibility FPC products.

Rolled Copper Foil

Advantages: Its outstanding flexibility and mechanical strength make it a top choice for high - flexibility FPC products. Additionally, it exhibits better electrical conductivity in the rolling direction, facilitating efficient signal transmission. This is particularly beneficial for high - speed data transfer applications in FPCs.

Disadvantages: The production process is intricate, resulting in a relatively high cost. Moreover, the surface roughness is larger, which can pose challenges in fine - circuit processing, restricting its use in some applications with strict circuit - line - width requirements.

Annealed Copper Foil

Advantages: It combines the benefits of good ductility and stable performance from the other two types. This results in excellent overall performance in various aspects, making it suitable for high - performance FPC applications where multiple properties need to be optimized.

Disadvantages: The annealing process adds to the production cost and extends the production cycle, leading to a relatively high price. This may limit its adoption in cost - sensitive FPC applications.

4.Considerations in the Selection and Use of Copper Foils

Application Requirements: Evaluate the specific application scenarios of FPCs. For example, if high flexibility is required, as in the case of flexible displays in the consumer electronics sector (a major market for FPCs), rolled or annealed copper foils may be more suitable. If high - speed signal transmission is crucial, such as in data center interconnects, electrodeposited copper foil with its good electrical conductivity might be preferred.

Thickness Selection: The thickness of the copper foil significantly impacts the electrical conductivity and mechanical properties of the circuit. Thicker copper foils are suitable for applications needing high current - carrying capacity, like power - supply FPCs in industrial equipment. Thinner copper foils, on the other hand, are better for applications requiring high flexibility and fine - circuit design, common in miniaturized electronic devices.

Surface Treatment: The surface of the copper foil often needs treatment. Oxidation - prevention treatment is essential to maintain its electrical performance over time, while roughening treatment can improve adhesion and solderability. The choice of surface treatment process should align with the specific manufacturing process requirements of the FPC.

Supplier Selection: Partner with reliable copper - foil suppliers. Check their product certifications, such as ISO quality management system certifications, and test reports. Ensure that the copper foils meet international standards like IPC (Institute for Printed Circuits) standards, which are widely recognized in the FPC industry.

5.Shenzhen Huaruixin Electronics Co., Ltd.'s Unique Perspectives

As a professional manufacturer of FPC&PCB&Rigid - Flex Printed Boards, Shenzhen Huaruixin Electronics Co., Ltd. has the following unique approaches:

In - Depth Material Research: The company conducts extensive research on different types of copper foils. By analyzing their performance characteristics in real - world FPC applications and keeping an eye on global industry trends (such as emerging requirements in the Internet of Things - related FPCs), it builds a comprehensive material database. This database serves as a foundation for more precise material selection.

Customized Solutions: Based on the specific needs of different customers and products, the company provides tailored copper - foil selection and circuit - design solutions. For example, for a customer developing a new - generation medical device with unique FPC requirements, the company can optimize the use of copper foils to meet both the performance and regulatory requirements.

Rigorous Quality Control: From copper - foil procurement to the final production of FPCs, the company enforces strict quality - control measures. This includes thorough incoming - material inspection, in - process quality monitoring using advanced inspection techniques like automated optical inspection (AOI), and comprehensive final - product testing. All these steps ensure that the quality of copper foils and the performance of FPC products meet the highest industry standards.

Technological Innovation: The company is dedicated to technological innovation. It actively adopts new copper - foil processing technologies, such as advanced electroplating techniques for electrodeposited copper foil to improve its surface quality, and novel rolling technologies for rolled copper foil to enhance its flexibility. These innovations not only improve the quality and performance of copper foils but also boost the competitiveness of the company's FPC products in the global market.

We warmly welcome new and old friends in the industry to engage in exchanges and learning. Together, we can drive the continuous development of the FPC industry, leveraging the latest trends and technologies in copper - foil applications.
