Product Overview

Our latest addition to the Rigid-Flex PCB lineup is a highly compact and versatile design, ideal for innovative product configurations that demand flexibility and durability. This Rigid-Flex PCB is characterized by its unique structure and advanced features, enabling optimal performance in space-constrained and complex assembly scenarios.

Key Features

Ultra-Compact Design: With a flex region as narrow as 2mm, this PCB is engineered to meet the demands of modern, space-saving designs. Its small size enhances versatility and allows for seamless integration into a wide range of products.

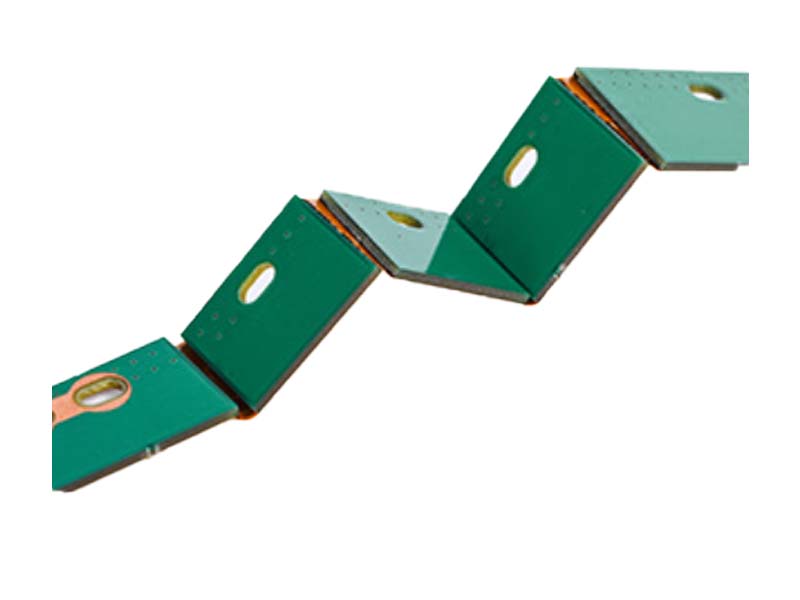

Flexible Assembly Capabilities: The flex area enables the PCB to bend at angles of 45° or 90°, making it perfect for applications that require tight folding or innovative assembly configurations. This feature ensures smooth and complete integration with customer product designs.

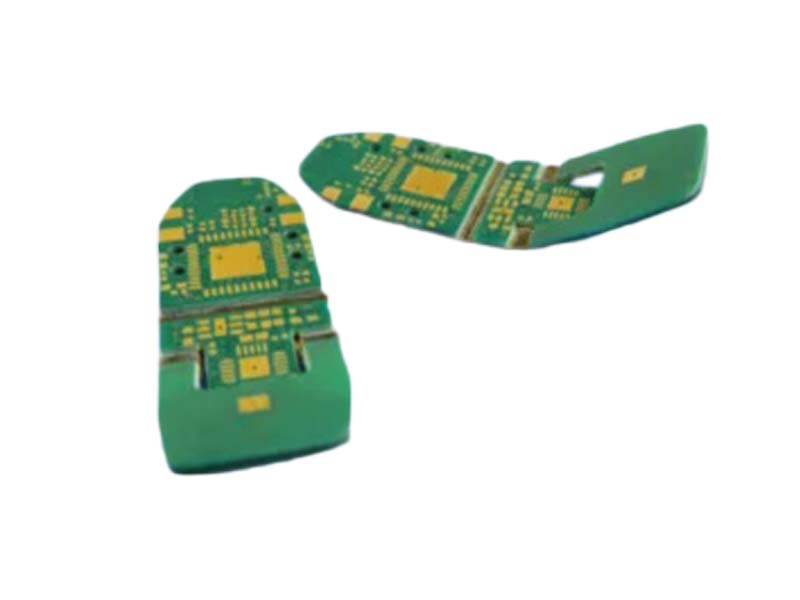

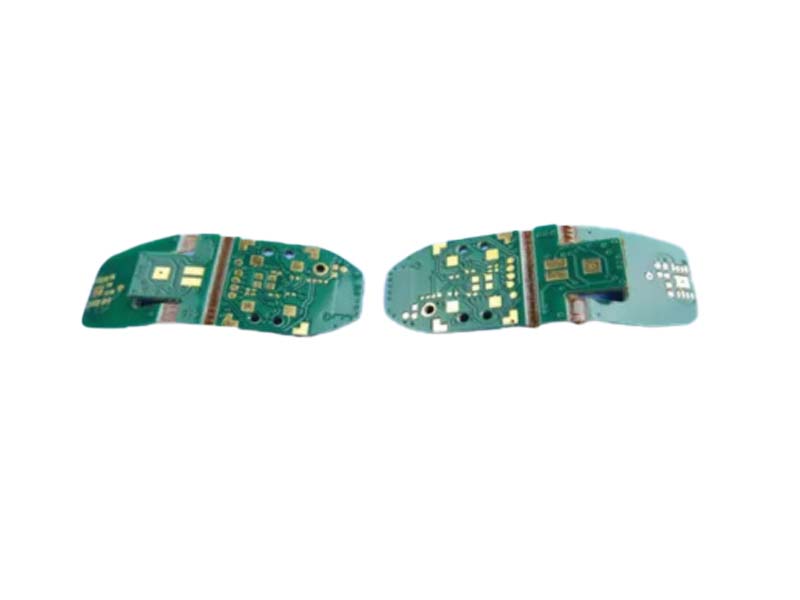

Multi-Layer Sandwich Structure: Built with a 4-layer, 3-region Rigid-Flex configuration, this PCB combines the best of both worlds:

A central flex layer for superior bendability and dynamic movement.

Upper and lower rigid layers, providing stable areas for soldering materials and mounting components as per design requirements.

Enhanced Structural Integrity: The sandwich-like construction ensures robust reliability while maintaining flexibility, making it suitable for dynamic or high-stress environments.

Design Advantages

Innovative Flexibility: The narrow flex region ensures compactness while allowing precision folding, achieving perfect alignment for customer designs.

Versatile Rigid Regions: These areas support the secure soldering of various materials and the mounting of complex components, enabling customization and adaptability to unique project requirements.

Optimized for Complex Assemblies: By allowing a flat PCB to bend and fit into intricate layouts, this Rigid-Flex PCB provides an excellent solution for applications requiring tight space optimization without compromising performance.

Applications

While this product is not tied to specific application fields, its features make it an ideal candidate for:

Space-constrained electronic assemblies.

Compact wearable devices.

Foldable or modular electronic designs.

Advanced consumer electronics.

High-precision industrial equipment.

Why Choose Our Compact Rigid-Flex PCB?

This PCB combines high performance with design versatility, making it a powerful solution for engineers and product designers seeking innovative ways to optimize space and functionality in their projects. With its ultra-compact design, flexible assembly capabilities, and robust multi-layer construction, this Rigid-Flex PCB empowers your designs to reach their full potential.
