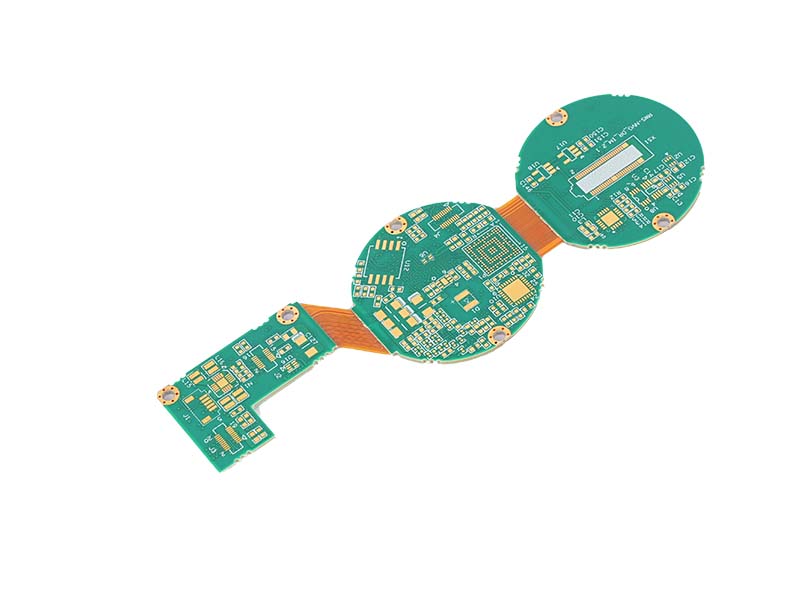

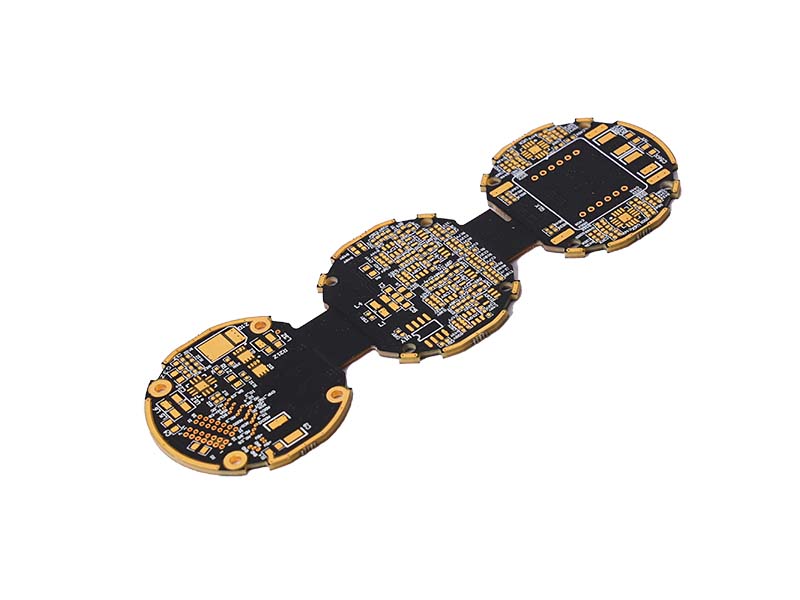

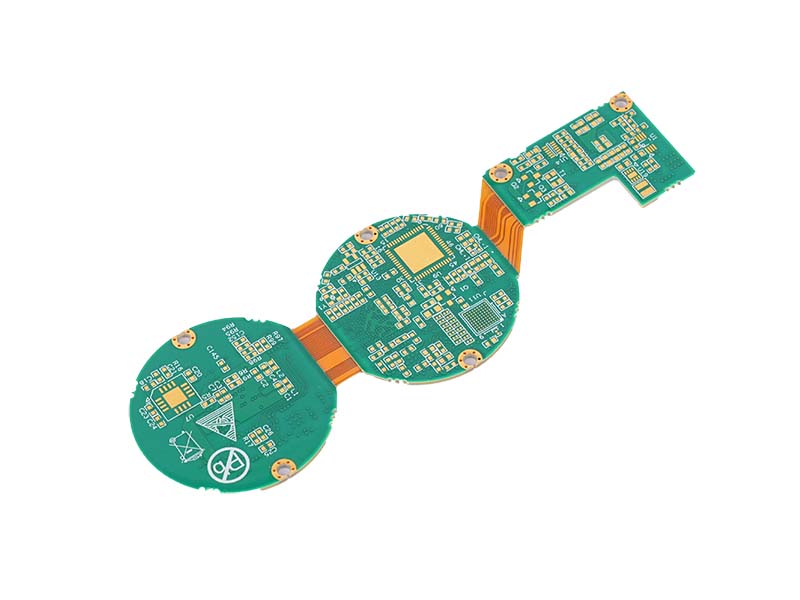

4-Layer Rigid-Flex PCB for Camera Applications

Product Overview

Designed specifically for compact camera assemblies, this 4-layer Rigid-Flex PCB combines exceptional flexibility and robust structural integrity. Its innovative design allows seamless integration into small and complex spaces, making it an ideal choice for high-performance camera systems.

Key Features

Flexible and Durable Flex Region: The flex area of this PCB is engineered for superior softness and bendability, enabling effortless folding and precise installation in the confined spaces of camera devices.

Compact Design: Tailored to meet the demanding requirements of modern cameras, this PCB optimizes space utilization without compromising functionality.

Multi-Layer Structure: This 4-layer Rigid-Flex PCB includes:

A highly flexible central flex region, designed for dynamic bending and folding.

Rigid layers on both ends to support secure soldering and component assembly.

Reliable Performance: Built with durability and reliability in mind, this PCB ensures consistent performance even in high-stress or high-movement environments.

Design Advantages

Perfect for Camera Assemblies: The ultra-flexible flex region allows for efficient installation in tight, irregular spaces, ensuring an optimal fit within camera housing.

Customizable Rigid Regions: These areas provide robust support for soldering and mounting essential camera components, enabling a high degree of customization.

Space Optimization: By leveraging its foldable design, this PCB helps maximize the use of available space in compact camera systems.

Applications

This Rigid-Flex PCB is specifically designed for use in:

Compact digital cameras.

Advanced video recording devices.

High-resolution surveillance systems.

Specialized optical equipment requiring flexible PCB designs.

Why Choose Our Camera-Specific Rigid-Flex PCB?

This PCB is engineered to meet the unique challenges of camera system design. With its flexible, foldable structure and robust multi-layer construction, it ensures high performance and reliability in space-constrained environments. Whether for professional cameras or compact consumer devices, this PCB is the perfect solution for innovative optical applications.
