HRX FPC

Product Description:

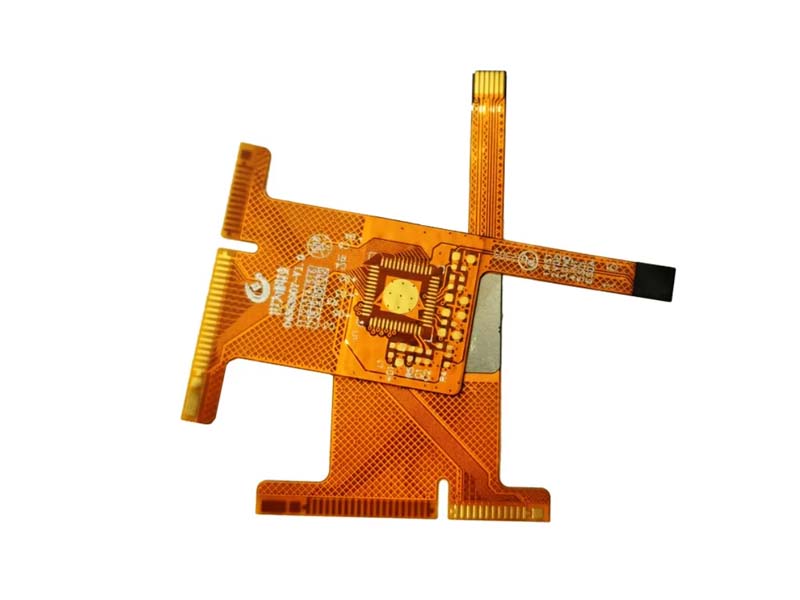

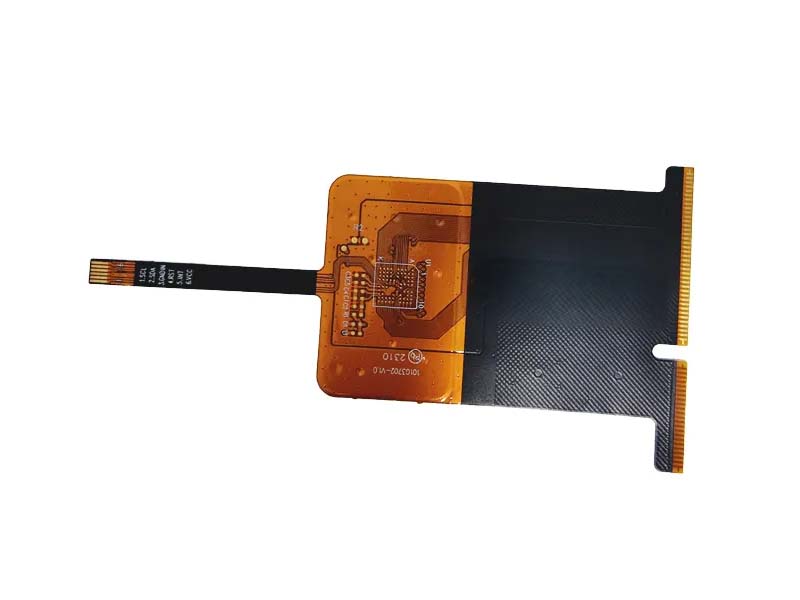

Our multilayer FPC solutions are engineered for advanced LCD applications, offering enhanced durability and precision for intricate designs. With 4-layer or 6-layer configurations, these FPCs provide reliable impedance control, EMI shielding, and robust mechanical support, making them ideal for high-performance electronic devices. The integration of gold-plated hard gold fingers ensures excellent conductivity and wear resistance, while the addition of stiffeners and stainless-steel reinforcements enhances the structural integrity and facilitates easy insertion and removal.

Key Features:

•Multilayer Design: 4-layer or 6-layer circuits for complex electrical configurations.

•Impedance Control: Incorporates grid-patterned copper to maintain signal integrity.

•EMI Shielding: Surface covered with an EMI shielding film to reduce electromagnetic interference.

•Gold-Plated Fingers: Hard gold plating ensures durable and reliable connections.

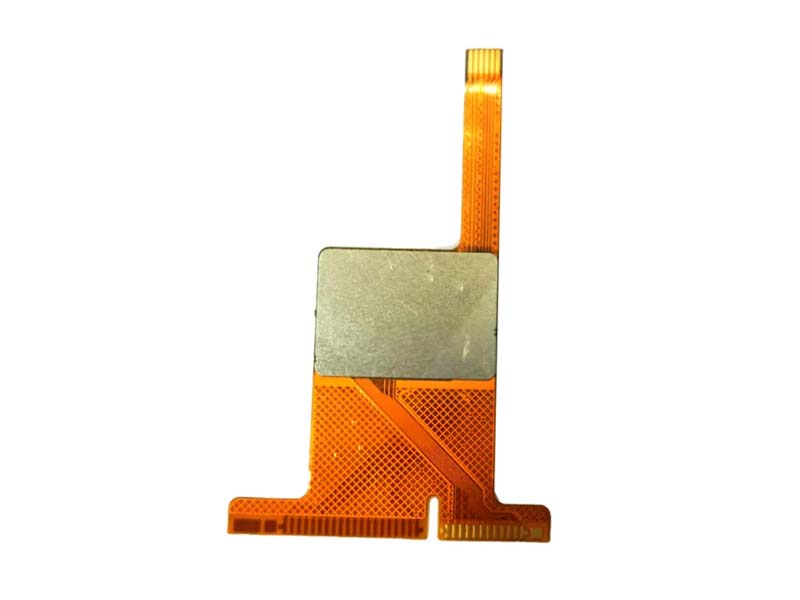

•Stiffener Support: Stainless-steel backing and stiffeners for enhanced durability and ease of use.

•Precision Components: Accommodates sensitive ICs and capacitor mounting with high-precision solder pads.

Sample Specifications:

•Layers: 4-layer or 6-layer circuit design.

•Shielding: EMI shielding film on the surface.

•Connector Interface: Gold fingers with hard gold plating and stiffener support.

•Stiffeners: Stainless-steel backing with grounding connection.

•Application: Suitable for LCD assemblies with intricate IC integration and high-reliability requirements.

4L FPC Structure Reference (Specifications Optional)：

This introduction highlights the specialized features of FPCs for drones, focusing on their high signal integrity, lightweight design, durability, flexible integration, and low power consumption. It also emphasizes their specific applications in aerial photography, surveying, inspection, and recreational use, showcasing how these FPCs meet the unique requirements of modern UAV technology.
