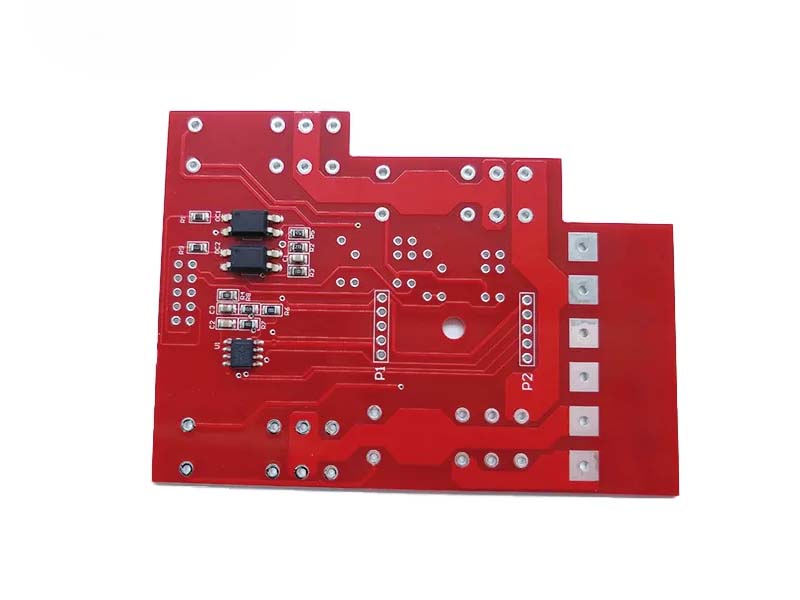

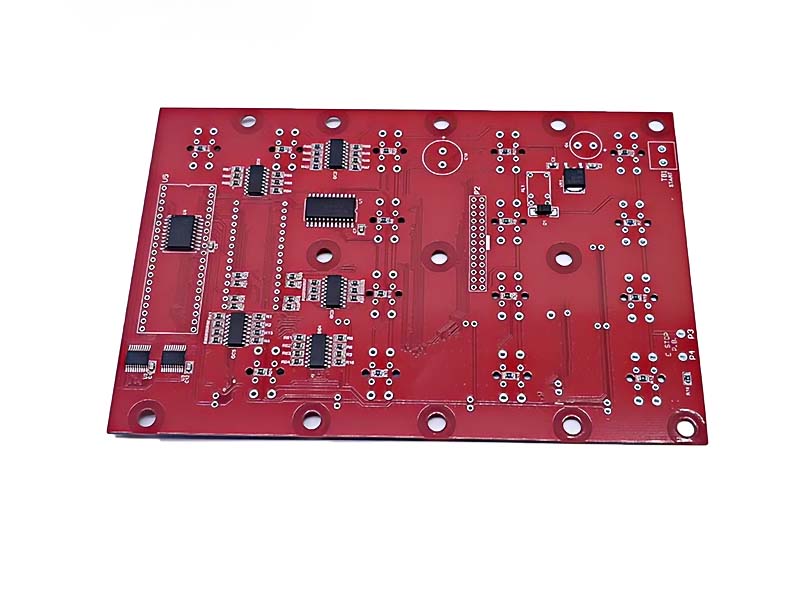

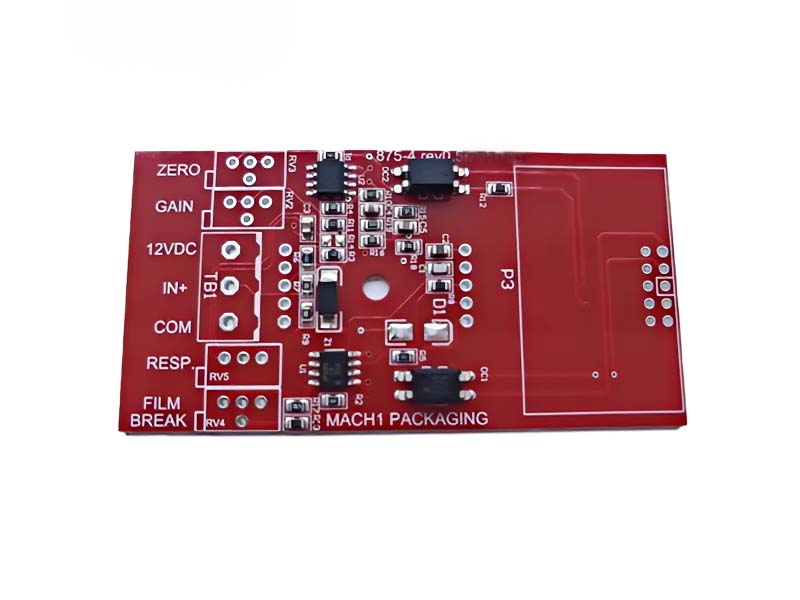

High-Precision PCBA with Advanced Soldering Technology

Product Overview

Our high-precision PCBA assembly is designed to meet the rigorous demands of modern electronic devices featuring dense IC pin layouts. Utilizing advanced soldering technologies and stringent quality control measures, this product ensures exceptional reliability and performance for high-density electronic designs.

Key Features

Advanced Soldering Techniques:

Reflow Soldering: Guarantees precise and uniform soldering of components, even in high-density layouts.

Selective Soldering: Focused soldering technology that ensures accurate connection for complex and delicate components.

High-Density IC Compatibility: Designed to handle densely packed IC pins with utmost precision, reducing the risk of soldering errors and potential failure points.

Enhanced Reliability: Ensures robust and stable connections for long-lasting performance in critical applications.

Stringent Quality Control

To maintain the highest standards of soldering quality and electrical performance, we implement a comprehensive, multi-level quality control process, including:

AOI (Automated Optical Inspection): Detects surface defects and misalignments to ensure perfect assembly.

AXI (Automated X-ray Inspection): Verifies hidden solder joints and internal connections, guaranteeing thorough inspection of every component.

Additional Testing Protocols: Includes functional testing and in-circuit testing to ensure all components meet stringent industry standards.

Design Advantages

Precision Engineering: Advanced soldering ensures error-free assembly, even for the most complex PCBA designs.

Reduced Failure Rates: High-quality soldering and rigorous testing minimize the likelihood of defects, enhancing overall product reliability.

Optimized for High-Density Layouts: Perfect for applications requiring compact, high-performance electronic assemblies.

Applications

This high-precision PCBA is ideally suited for:

Medical devices requiring exceptional reliability.

Aerospace and automotive systems with strict quality requirements.

High-performance consumer electronics with dense IC layouts.

Industrial control systems demanding robust and fault-free performance.

Why Choose Our High-Precision PCBA?

With cutting-edge soldering technologies and rigorous quality control protocols, our PCBA assembly delivers unparalleled precision and reliability. Designed to excel in high-density and high-demand applications, this product is the ideal choice for engineers and manufacturers seeking top-tier PCBA solutions.
