Product Description:

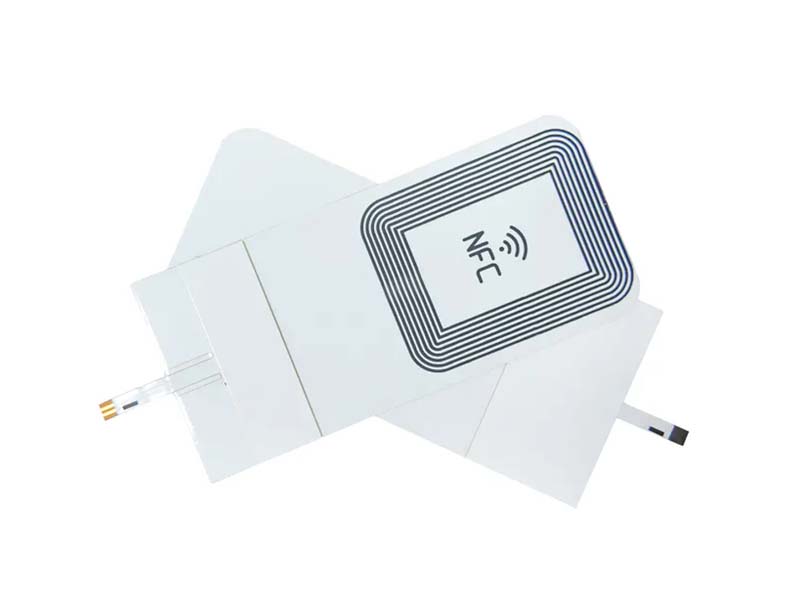

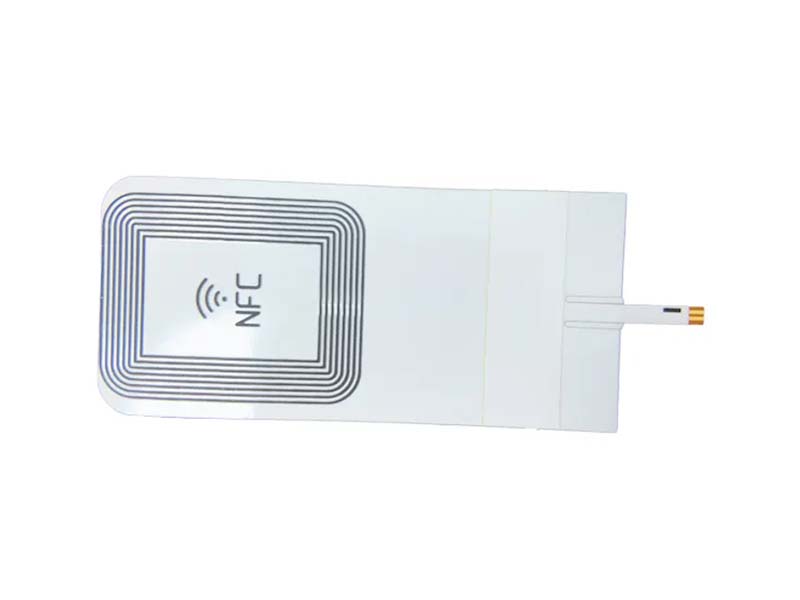

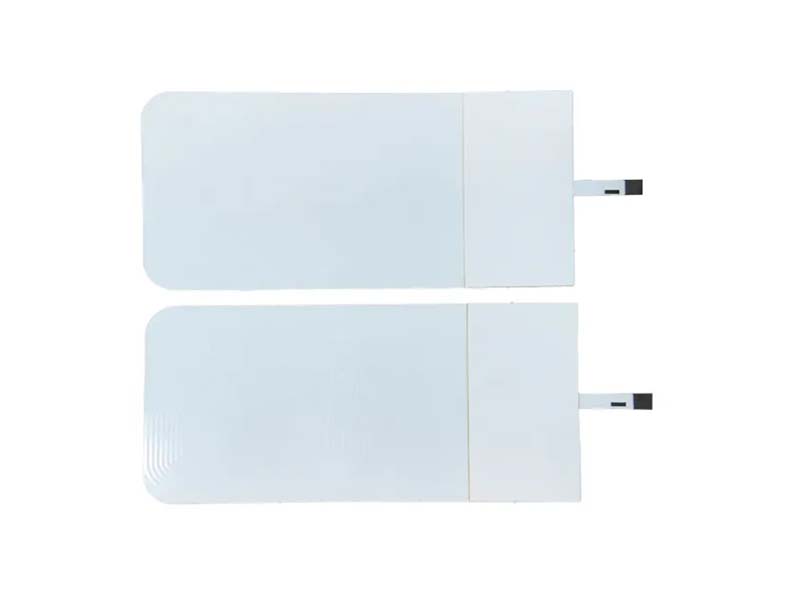

Our Double-sided Flexible Printed Circuit (FPC) is engineered with a white coverlay on both sides, delivering a clean and professional appearance while enhancing durability. Designed with coil traces and hard-gold-plated gold fingers, this FPC ensures seamless assembly and reliable insertion/removal performance. Its robust yet flexible structure is ideal for applications requiring repeated connector engagements and precise electrical connections.

Key Features：

•Dual White Coverlay: Enhances aesthetics and improves resistance to environmental factors, such as moisture and contaminants.

•Gold Finger Design with Hard Gold Plating: Ensures high wear resistance and superior conductivity for frequent insertion/removal cycles.

•Coil Trace Design: Optimized for applications requiring efficient signal transmission and minimized resistance.

•High Flexibility and Durability: Supports compact device designs without compromising structural integrity.

•Ease of Assembly: Designed for seamless integration into connector-based systems, reducing assembly time.

Sample Specifications：

•Base Material: Polyimide

•Coverlay Color: White (Both Sides)

•Surface Finish: Hard Gold Plating (≥ 30μin) on Gold Fingers

•Thickness: FPC base: 0.2mm

•Trace Design: Coil pattern with precise impedance control

•Applications: Consumer electronics, medical devices, industrial connectors, and automotive systems.

Double Sided FPC Structure Reference (Specifications Optional)：

This introduction emphasizes the specialized nature of FPCs for camera applications, highlighting their flexibility, durability, high-speed data transmission, and efficiency. It also showcases their diverse applications in various camera models, ensuring they meet the specific needs of modern camera technology.
