HRX FPC

Product Description:

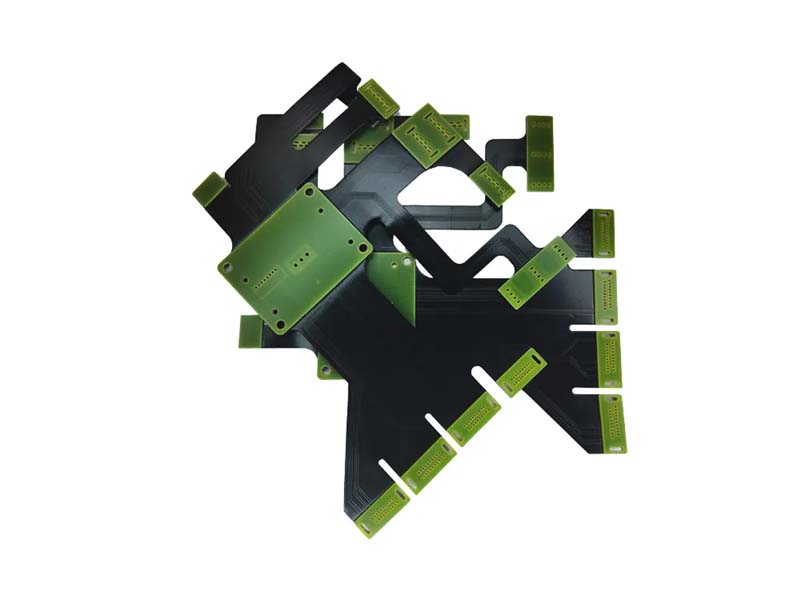

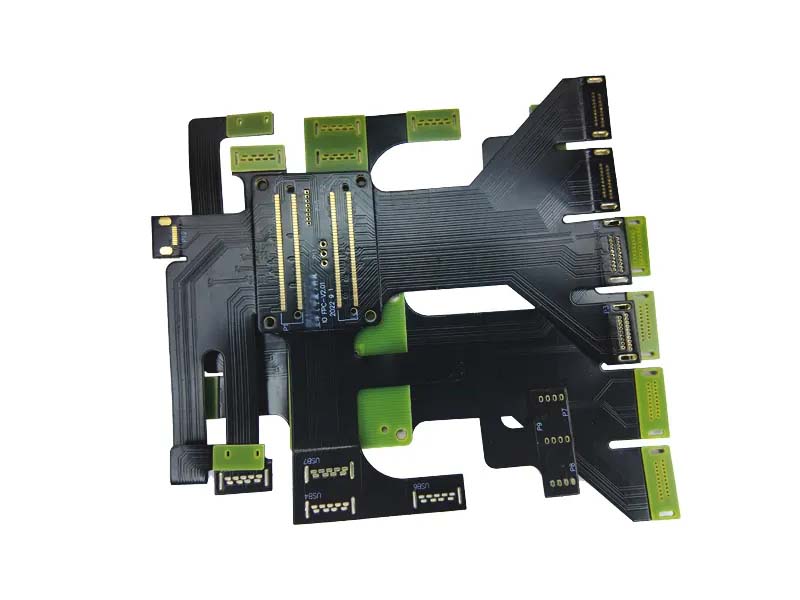

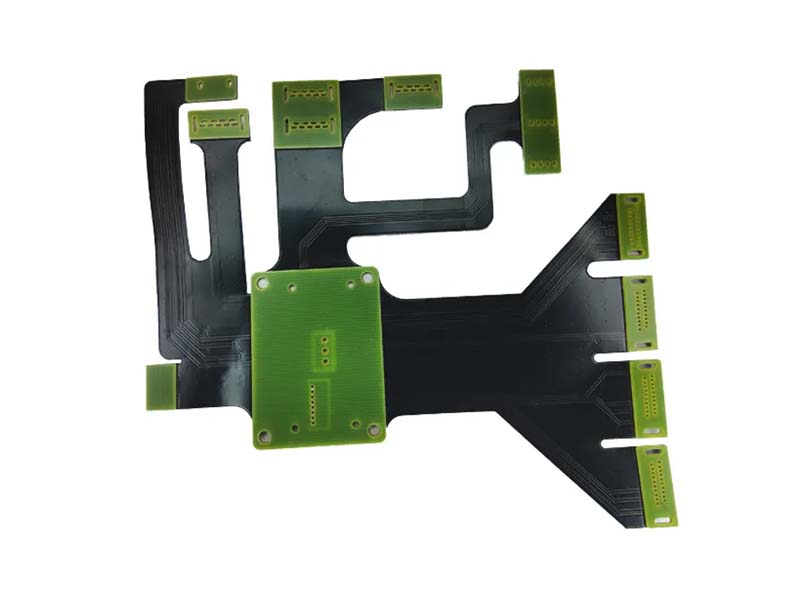

Our FPC for Multiple Connectors is a high-precision solution designed to accommodate up to 13 connectors of varying sizes, each positioned uniquely to fit your assembly requirements. This innovative design maximizes space utilization, enabling a compact and efficient layout while maintaining the ideal placement for every connector. To ensure stability, an FR4 stiffener is applied to the back of each connector location, providing PCB-like robustness and reliability.

Key Features

•Custom Connector Design: Supports up to 13 connectors of different sizes, each customized to fit specific positions.

•Space Optimization: The compact design minimizes assembly space while ensuring efficient layout.

•Enhanced Stability: FR4 stiffeners enhance the durability and strength of each connector, mimicking traditional PCB performance.

•Flexible Material: Highly adaptable FPC material allows easy integration into complex assembly designs.

•High Precision: Manufactured with strict tolerances to meet demanding electronic assembly standards.

Sample Specifications

•Connector Size Range: Customizable based on requirements

•Stiffener Material: FR4

•Base Material: Polyimide or equivalent high-flexibility material

•Thickness: 0.1 mm to 0.2 mm (customizable)

•Assembly Tolerance: ±0.05 mm

4L FPC Structure Reference (Specifications Optional)：

This introduction highlights the specialized features of FPCs for drones, focusing on their high signal integrity, lightweight design, durability, flexible integration, and low power consumption. It also emphasizes their specific applications in aerial photography, surveying, inspection, and recreational use, showcasing how these FPCs meet the unique requirements of modern UAV technology.
