HRX FPC

Product Description:

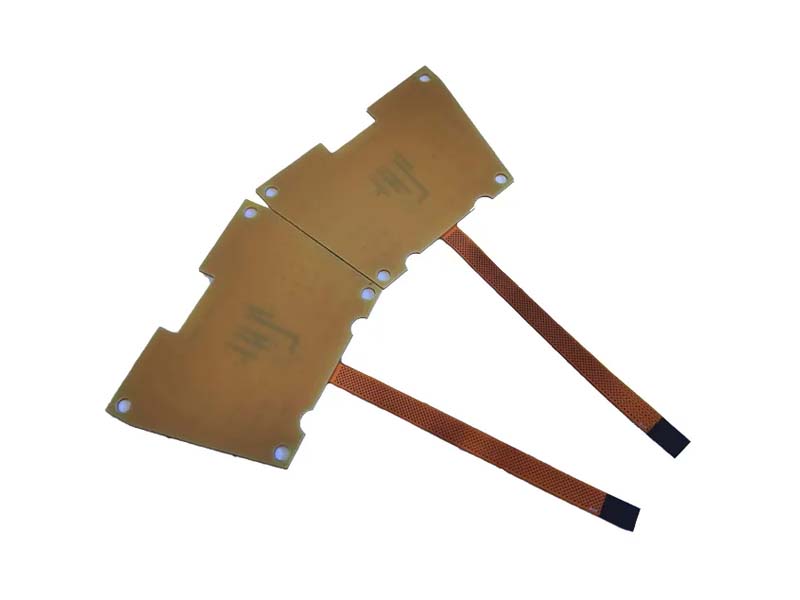

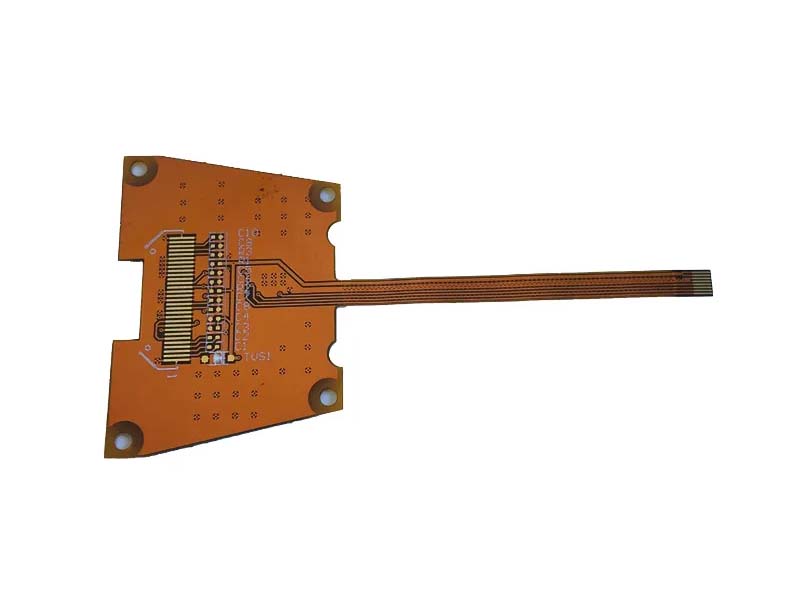

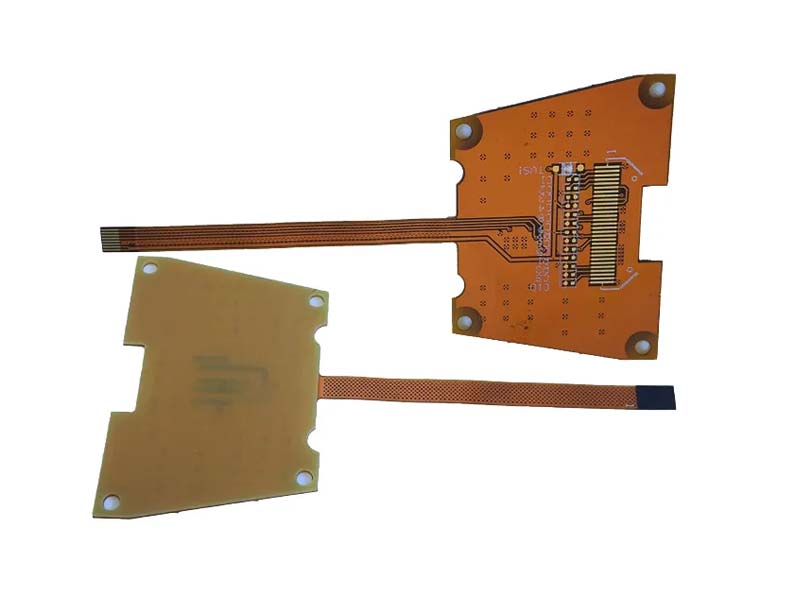

This 2-layer Flexible Printed Circuit (FPC) is a highly reliable solution designed specifically for medical devices, meeting stringent quality standards. The design features impedance control lines combined with grid circuits, ensuring superior electrical performance. It includes hard gold-plated gold fingers for enhanced durability during repeated insertions and removals. The back of the material section is reinforced with a full piece of FR4 for robust support, while the tail region remains flexible for easy assembly and space efficiency. This thoughtful design ensures optimal functionality and adaptability for compact and high-performance medical applications.

Key Features:

•Impedance-Controlled Design: Ensures stable signal transmission and reliable performance.

•Hard Gold-Plated Gold Fingers: Provides excellent durability for frequent insertion and removal cycles.

•Reinforced Backing: Full FR4 reinforcement on the back for added support and rigidity.

•Flexible Tail Region: Allows for easy bending during assembly, saving space in compact medical devices.

•Grid Circuit Design: Combines high-performance and lightweight characteristics.

•Strict Quality Compliance: Meets the rigorous standards required for medical equipment.

Sample Specifications：

•Layers: 2-layer FPC

•Material: Polyimide with full FR4 backing (excluding the tail region)

•Plating: Hard gold-plated gold fingers

•Tail Flexibility: Bendable for assembly convenience

•Application: Medical devices requiring compact, high-reliability designs

•Additional Features: Supports impedance control and grid circuit integration

Double Sided FPC Structure Reference (Specifications Optional)：

This introduction emphasizes the specialized nature of FPCs for camera applications, highlighting their flexibility, durability, high-speed data transmission, and efficiency. It also showcases their diverse applications in various camera models, ensuring they meet the specific needs of modern camera technology.
