HRX FPC

Product Description:

Discover the versatility and high performance of our FPC cable, designed to meet the demands of high-density electronic applications. Known for its extremely thin and flexible design, this FPC cable is an ideal solution for connecting various components within compact electronic devices.

Each end of the cable is reinforced with a stiffener, providing added rigidity to simplify the insertion process and ensuring a secure and reliable connection. The stiffener also increases the cable's thickness slightly, enhancing durability without compromising flexibility.

Advantage:

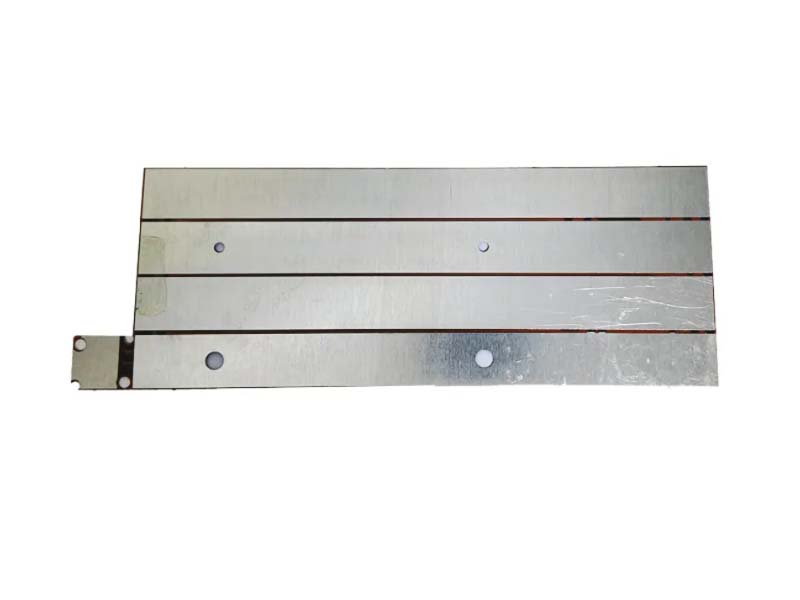

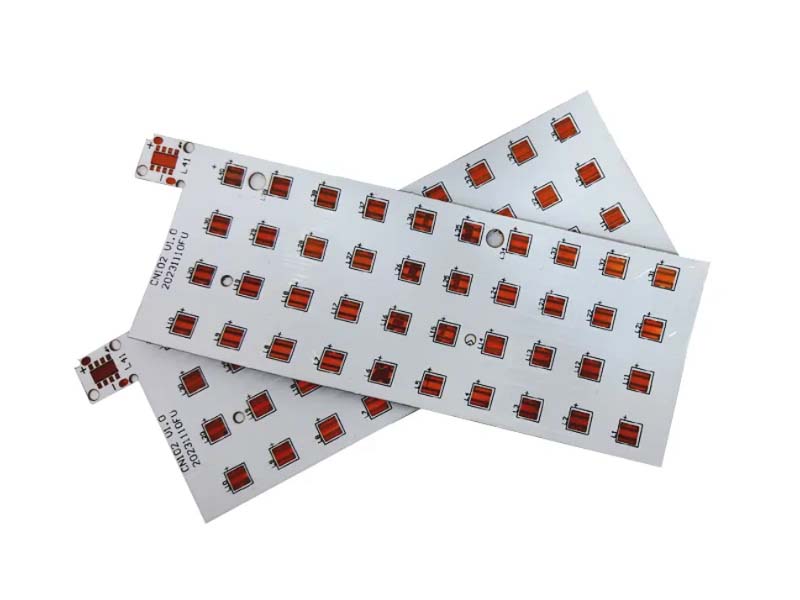

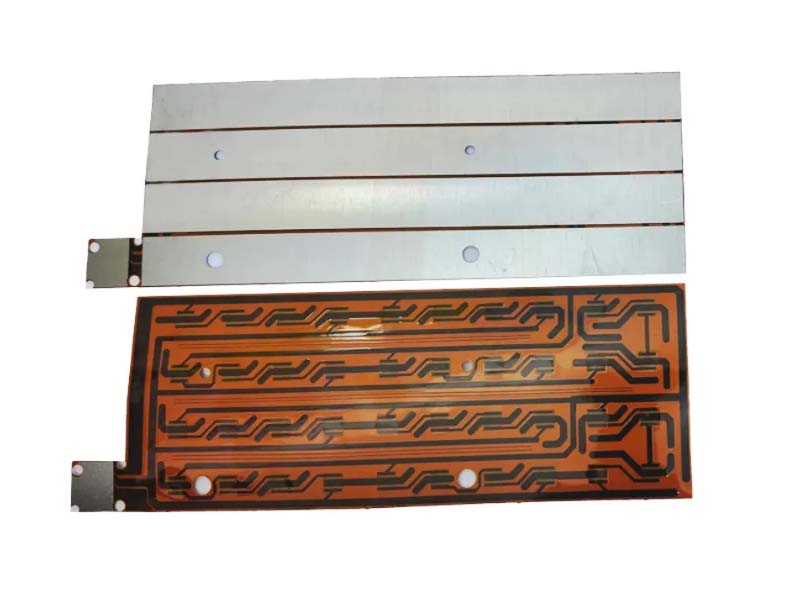

Our Single-sided Flexible Printed Circuit (FPC) is specially designed for LED lamps, featuring a white coverlay on the front side, replacing the conventional yellow coverlay. The back side incorporates an aluminum stiffener that serves dual purposes: providing mechanical support for LED assembly on the front and enhancing heat dissipation during operation. Additionally, the segmented design of the stiffener allows for light bending, ensuring flexibility without compromising durability.

Key Features：

•White Coverlay for Enhanced Light Reflection: Optimized for LED applications, the white coverlay improves brightness and uniformity compared to traditional yellow coverlay.

•Integrated Aluminum Stiffener: Offers robust support for LED assembly and aids in heat dissipation, extending the lifespan of the LEDs.

•Flexible Design: The segmented aluminum stiffener design allows for light bending to accommodate various application needs.

•High Durability: Built to withstand thermal and mechanical stresses common in LED applications.

Sample Specifications：

•Base Material: Polyimide

•Coverlay Color: White (Front Side)

•Stiffener Material: Aluminum (Back Side)

•Stiffener Design: Segmented for light bending

•Thickness Range: FPC base: 0.13mm; Aluminum stiffener: 0.5mm

•Application: LED lighting assemblies, including light strips and panel lamps.

Single-Layer FPC Structure Reference (Specifications Optional)：

Customization:

We understand that different projects have unique requirements. This FPC cable can be customized based on your specific needs, such as pins on same side or opposite side, how many pins, pitch, and length. Please contact us with your specifications, and our team will work with you to deliver a tailor-made solution.
