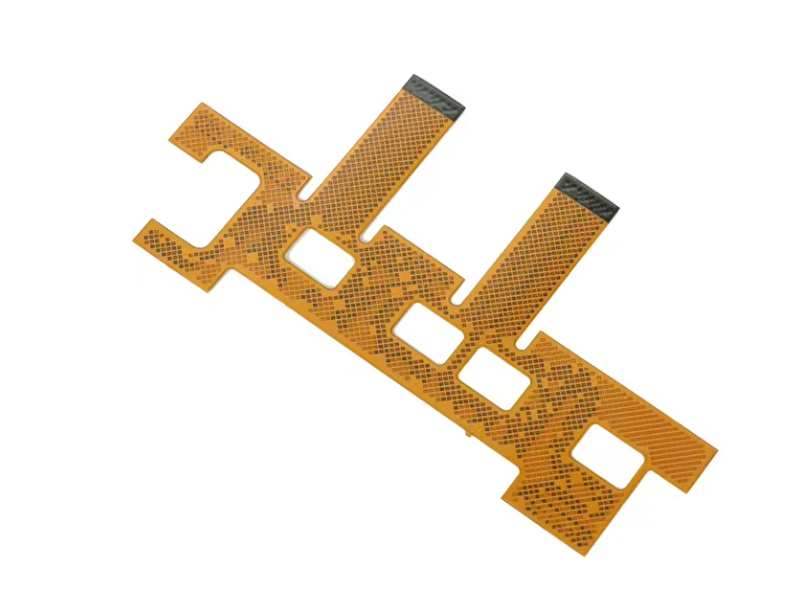

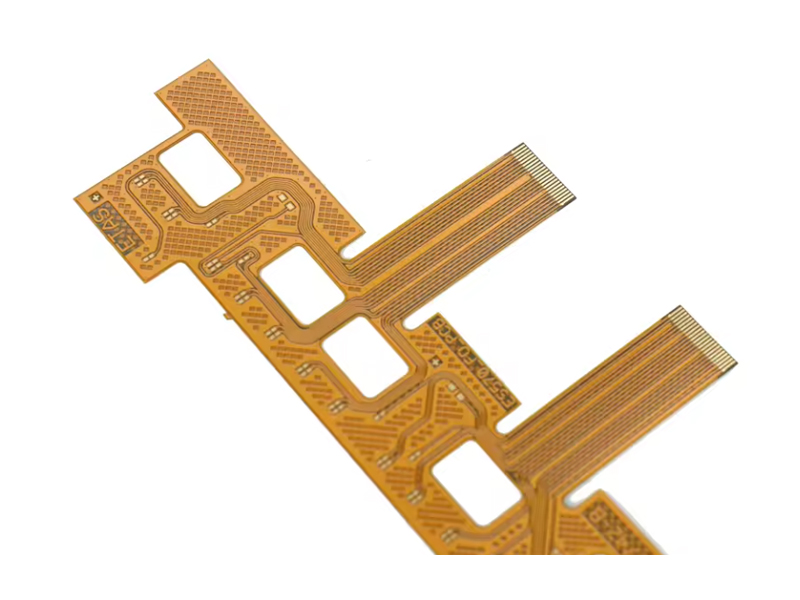

FPC For CT Scan
  • FPC For CT Scan
  • FPC For CT Scan
  • FPC For CT Scan
  • FPC For CT Scan

Product Description:

Our FPC for CT scan devices is precisely engineered to meet the stringent requirements of advanced medical imaging technology. These flexible circuits are essential for ensuring accurate data transmission, reliability, and durability within CT scan systems, enhancing their performance and longevity.


Key Features:

•High Signal Integrity: Ensures accurate and reliable data transmission crucial for high-resolution imaging, maintaining the quality and precision required in CT scans.

•Radiation Resistance: Designed to withstand exposure to high levels of radiation, ensuring long-term durability and consistent performance in medical imaging environments.

•Low Noise Performance: Minimizes electrical noise to ensure clear and precise imaging data, crucial for accurate diagnostic results.


Applications:

•CT Scanners: Integral to the internal systems of CT scanners, supporting high-resolution imaging and reliable data transfer.

•Diagnostic Equipment: Suitable for other advanced diagnostic devices requiring high signal integrity and durability.

•Medical Imaging Systems: Enhances the performance of various medical imaging systems by providing robust and reliable connectivity solutions.

4L FPC Structure Reference (Specifications Optional):


4L FPC Structure Reference (Specifications Optional):


4L FPC with Adhesive material


PI (12.5/25/50/100um, etc.)

Coverlay


AD (15/25/35/50um, etc.)


Copper (6/9/12/18/35/70/100um, etc.)

Base Material


AD (0/12.5/20/25um, etc.)


PI (12.5/25/50/100um, etc.)


AD (0/12.5/20/25um, etc.)


Copper (6/9/12/18/35/70/100um, etc.)


AD (15/25/35/50um, etc.)

Coverlay


PI (12.5/25/50/100um, etc.)


AD (15/25/35/50um, etc.)



PI (12.5/25/50/100um, etc.)

Coverlay


AD (15/25/35/50um, etc.)


Copper (6/9/12/18/35/70/100um, etc.)

Base Material


AD (0/12.5/20/25um, etc.)


PI (12.5/25/50/100um, etc.)


AD (0/12.5/20/25um, etc.)


Copper (6/9/12/18/35/70/100um, etc.)


AD (15/25/35/50um, etc.)

Coverlay


PI (12.5/25/50/100um, etc.)



4L FPC with Adhesiveless material


PI (12.5/25/50/100um, etc.)

Coverlay


AD (15/25/35/50um, etc.)


Copper (6/9/12/18/35/70/100um, etc.)

Base Material


PI (12.5/25/50/100um, etc.)


Copper (6/9/12/18/35/70/100um, etc.)


AD (15/25/35/50um, etc.)

Coverlay


PI (12.5/25/50/100um, etc.)


AD (15/25/35/50um, etc.)



PI (12.5/25/50/100um, etc.)

Coverlay


AD (15/25/35/50um, etc.)


Copper (6/9/12/18/35/70/100um, etc.)

Base Material


PI (12.5/25/50/100um, etc.)


Copper (6/9/12/18/35/70/100um, etc.)


AD (15/25/35/50um, etc.)

Coverlay


PI (12.5/25/50/100um, etc.)


This introduction highlights the specialized features of FPCs for CT scan devices, focusing on their high signal integrity, radiation resistance, compact design, durability, and low noise performance. It also emphasizes their critical applications in CT scanners and other diagnostic equipment, showcasing their importance in medical imaging technology.
