HRX FPC

Product Description:

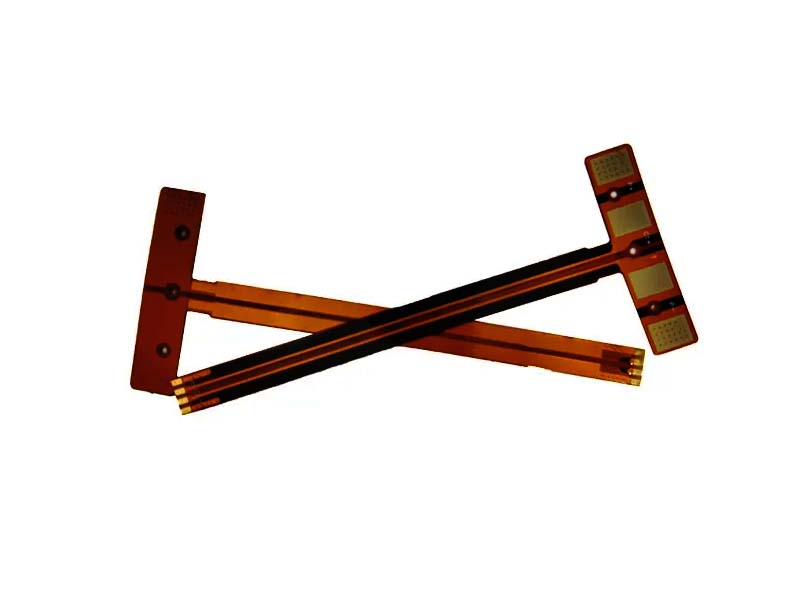

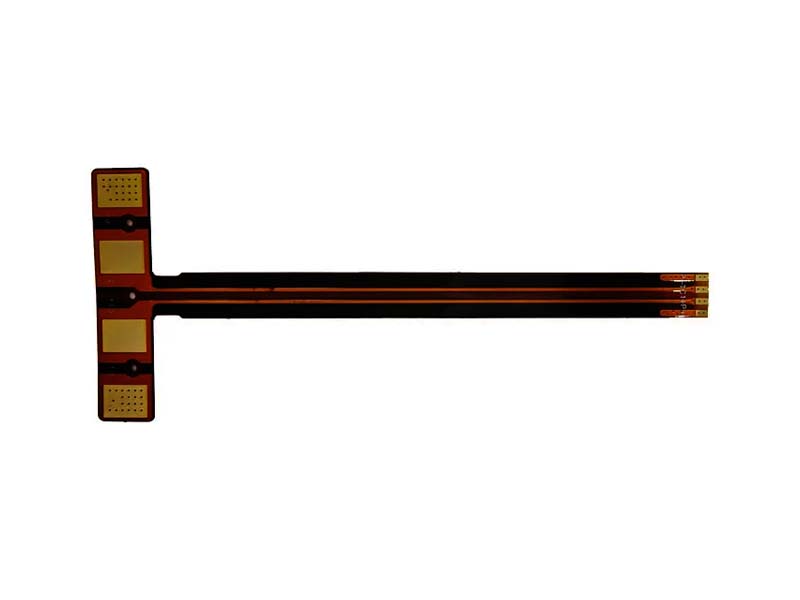

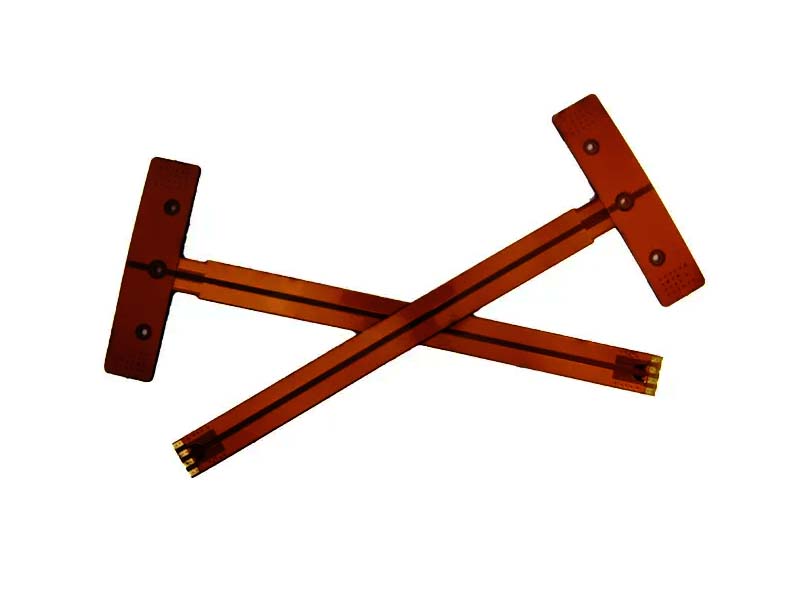

This high-performance FPC is specifically designed for battery protection applications, where reliability, durability, and precision are essential. Engineered with gold-plated surfaces featuring through-hole connections, it ensures superior electrical conductivity, enhanced mechanical strength, and excellent heat dissipation. The inclusion of gold fingers with through-holes further strengthens the interface for frequent insertion and removal cycles, making it ideal for compact and high-demand battery management systems (BMS). Built with flexible and durable materials, this FPC adapts to tight spaces while maintaining exceptional performance, making it an excellent choice for modern battery protection needs.

Key Features:

•Gold-Plated Surfaces with Through-Holes: Ensures robust electrical connections, improved heat dissipation, and long-term durability.

•Gold Fingers with Through-Holes: Strengthened for frequent mechanical insertions, ensuring reliability and reduced wear.

•Optimized Current Path Design: Handles high current loads with minimal resistance, suitable for demanding battery protection applications.

•Flexible and Durable Construction: Easily adapts to compact spaces without compromising structural integrity.

Sample Specifications

•Material: Polyimide (PI)

•Surface Finish: Gold plating with through-hole connections

•Gold Finger Design: Gold-plated with through-holes for dual-side electrical connections

•Layer Count: 2-layer FPC design

•Applications: Battery management systems (BMS), battery protection modules, and high-reliability electronic devices

Double Sided FPC Structure Reference (Specifications Optional)：

This introduction emphasizes the specialized nature of FPCs for camera applications, highlighting their flexibility, durability, high-speed data transmission, and efficiency. It also showcases their diverse applications in various camera models, ensuring they meet the specific needs of modern camera technology.
