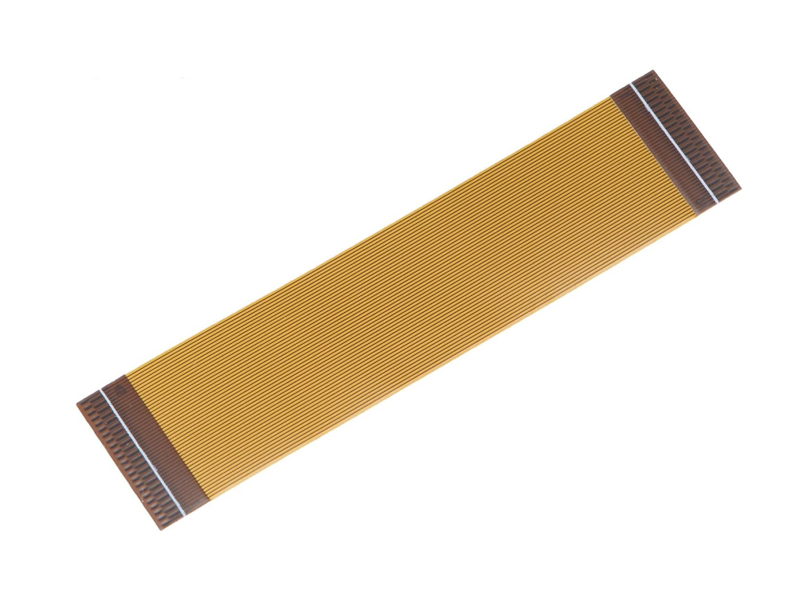

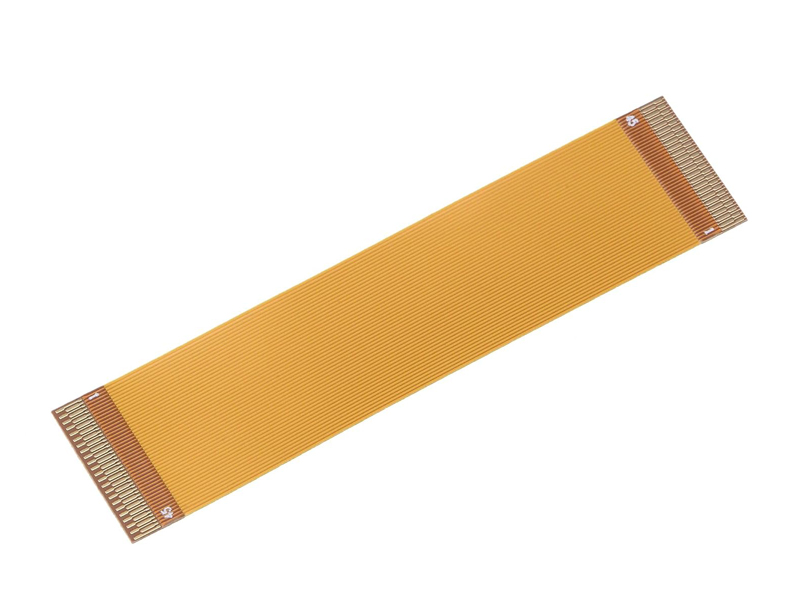

FPC Cable for Connector
  • FPC Cable for Connector
  • FPC Cable for Connector
  • FPC Cable for Connector
  • FPC Cable for Connector

Product Description:

Discover the versatility and high performance of our FPC cable, designed to meet the demands of high-density electronic applications. Known for its extremely thin and flexible design, this FPC cable is an ideal solution for connecting various components within compact electronic devices.

Each end of the cable is reinforced with a stiffener, providing added rigidity to simplify the insertion process and ensuring a secure and reliable connection. The stiffener also increases the cable's thickness slightly, enhancing durability without compromising flexibility.


Key Features:

•High Density Application: Perfect for use in devices where space is limited and reliability is crucial.

•Reinforced Ends: Stiffened ends facilitate easier insertion and maintain connection integrity.

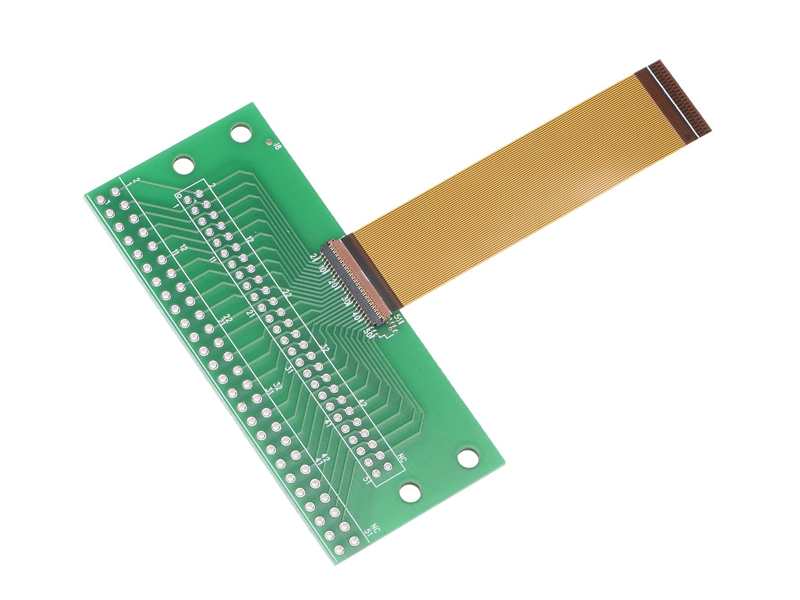

•Wide Compatibility: Suitable for various LCD screens, including those found in digital cameras, digital camcorders, laptops, LCD TVs, and LCD monitors.

Sample Specifications:

•Type: A Type (Pins on the Same Side)

•Pins: 45 Pin

•Pitch: 0.3mm

•Length: 60mm

•Color: Brown, Copper Tone

•Total Size: 60 x 14 mm


Single-Layer FPC Structure Reference (Specifications Optional):


1L FPC with Adhesive material


PI (12.5/25/50/100um, etc.)

Coverlay


AD (15/25/35/50um, etc.)


Copper (6/9/12/18/35/70/100um, etc.)

Base Material


AD (0/12.5/20/25um, etc.)


PI (12.5/25/50/100um, etc.)


1L FPC with Adhesiveless material


PI (12.5/25/50/100um, etc.)

Coverlay


AD (15/25/35/50um, etc.)


Copper (6/9/12/18/35/70/100um, etc.)

Base Material


PI (12.5/25/50/100um, etc.)


Customization:

We understand that different projects have unique requirements. This FPC cable can be customized based on your specific needs, such as pins on same side or opposite side, how many pins, pitch, and length. Please contact us with your specifications, and our team will work with you to deliver a tailor-made solution.

Let’s talk! We’ll provide the perfect solution for you!
