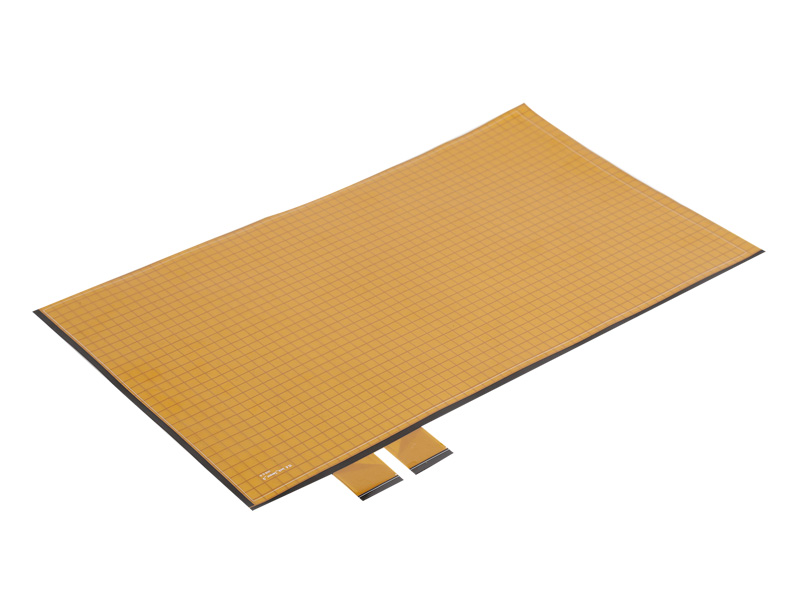

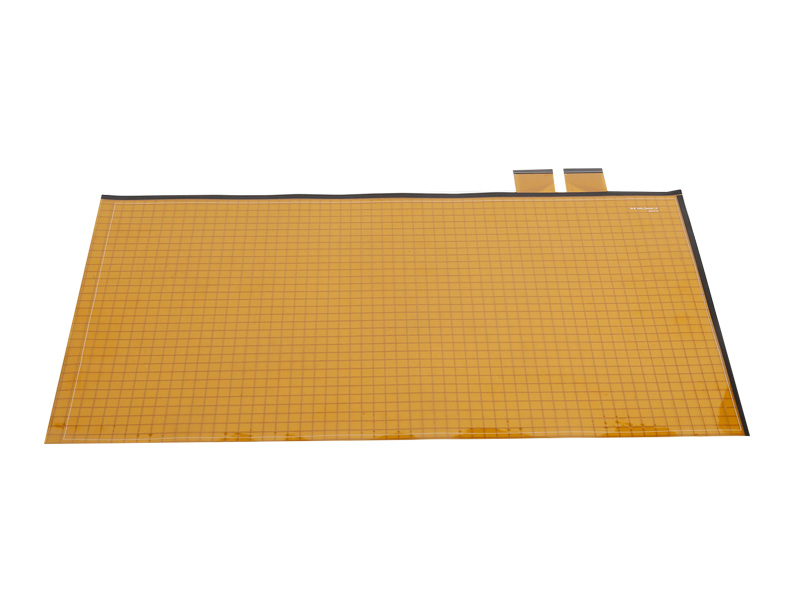

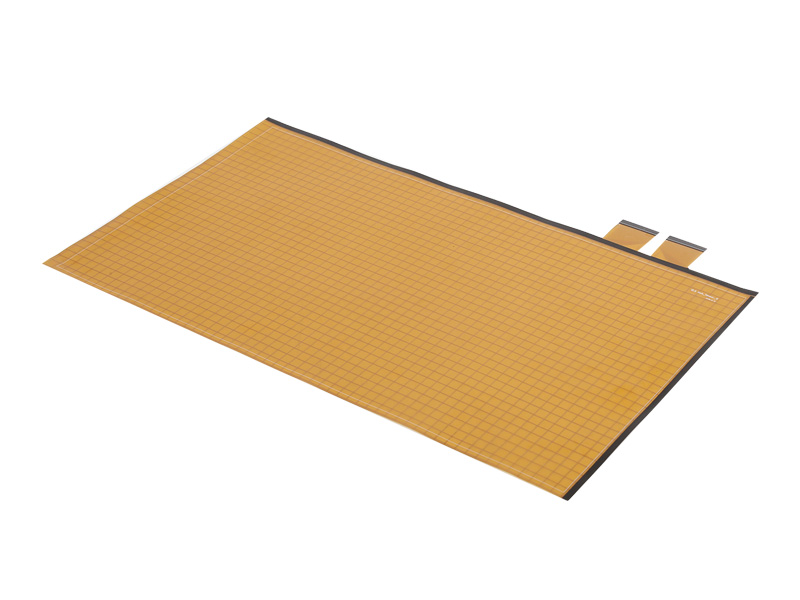

Double Sided Circuits For Sensors
  • Double Sided Circuits For Sensors
  • Double Sided Circuits For Sensors
  • Double Sided Circuits For Sensors
  • Double Sided Circuits For Sensors
  • Double Sided Circuits For Sensors

Product Description:

Our FPC for touch sensors is specifically engineered to meet the precise requirements of modern touch-sensitive technology. These flexible circuit boards are integral to delivering accurate touch input, maintaining responsiveness, and ensuring seamless integration with touch-sensitive displays and control panels.


Key Features:

•High Sensitivity and Precision: Designed to support the high-resolution touch sensing required for precise and accurate input detection. Our FPCs facilitate exceptional signal quality and sensitivity, ensuring that even the smallest touch gestures are captured accurately.

•Seamless Integration: Built to integrate effortlessly with touch sensor modules, our FPCs accommodate the specific layout and connection requirements of various touch technologies, including capacitive and resistive touchscreens.

•Flexible and Thin Design: The ultra-thin and flexible construction allows for easy integration into compact and curved surfaces, making it ideal for use in a wide range of touch-sensitive devices, from smartphones to complex industrial control panels.


Applications:

•Smartphones and Tablets: Perfect for touch-sensitive screens in smartphones and tablets, offering precise touch detection and seamless integration with touch modules.

•Consumer Electronics: Ideal for touch interfaces in consumer electronics, such as smart home devices and wearables, where responsiveness and accuracy are key.

•Industrial Control Panels: Suitable for touch panels in industrial equipment, ensuring reliable performance and durability in demanding environments.

•Automotive Displays: Enhances the functionality of touch-sensitive controls and displays in vehicles, providing accurate input detection and integration with vehicle systems.


Double Sided FPC Structure Reference (Specifications Optional):


2L FPC with Adhesive material


PI (12.5/25/50/100um, etc.)

Coverlay


AD (15/25/35/50um, etc.)


Copper (6/9/12/18/35/70/100um, etc.)

Base Material


AD (0/12.5/20/25um, etc.)


PI (12.5/25/50/100um, etc.)


AD (0/12.5/20/25um, etc.)


Copper (6/9/12/18/35/70/100um, etc.)


AD (15/25/35/50um, etc.)

Coverlay


PI (12.5/25/50/100um, etc.)

2L FPC with Adhesiveless material


PI (12.5/25/50/100um, etc.)

Coverlay


AD (15/25/35/50um, etc.)


Copper (6/9/12/18/35/70/100um, etc.)

Base Material


PI (12.5/25/50/100um, etc.)


Copper (6/9/12/18/35/70/100um, etc.)


AD (15/25/35/50um, etc.)

Coverlay


PI (12.5/25/50/100um, etc.)


This introduction highlights the specialized features of FPCs for touch sensors, focusing on their high sensitivity, low-noise performance, seamless integration, flexible design, and durability. It also emphasizes their specific applications in various touch-sensitive technologies, showcasing how they meet the unique needs of touch sensor systems.
