Product Description:

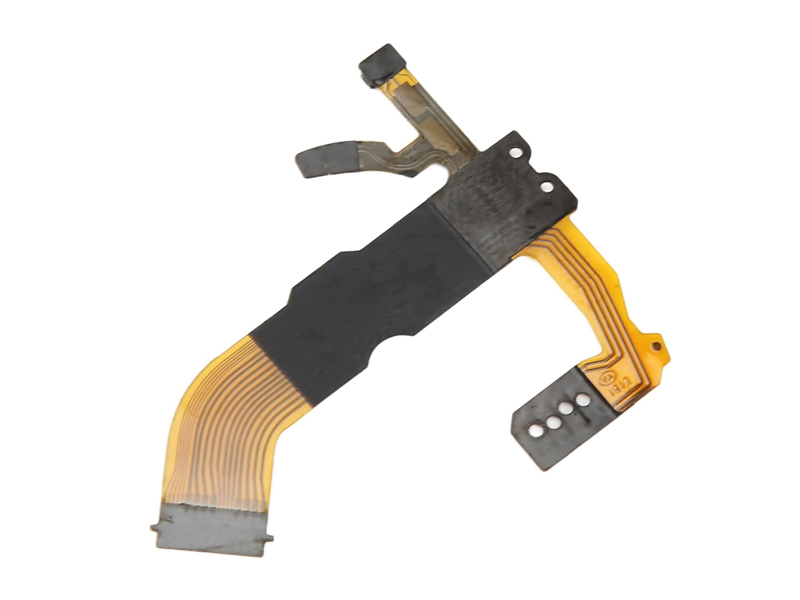

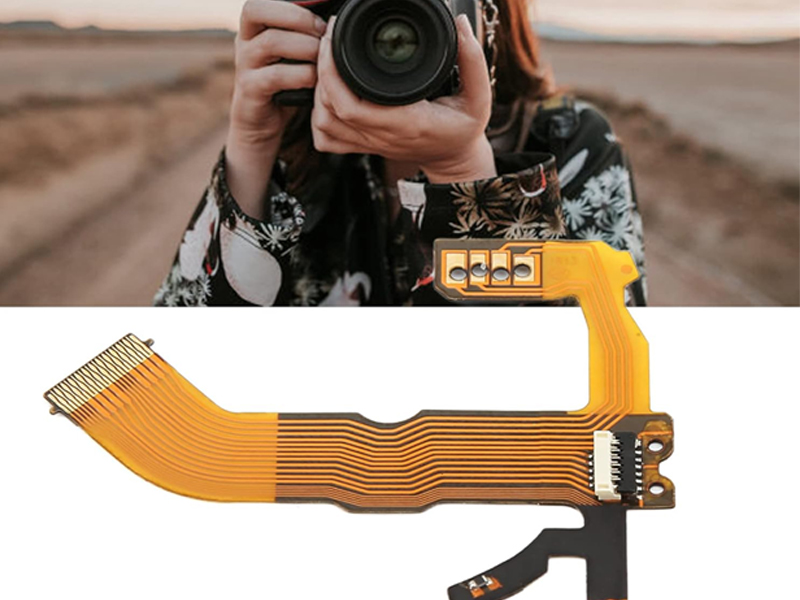

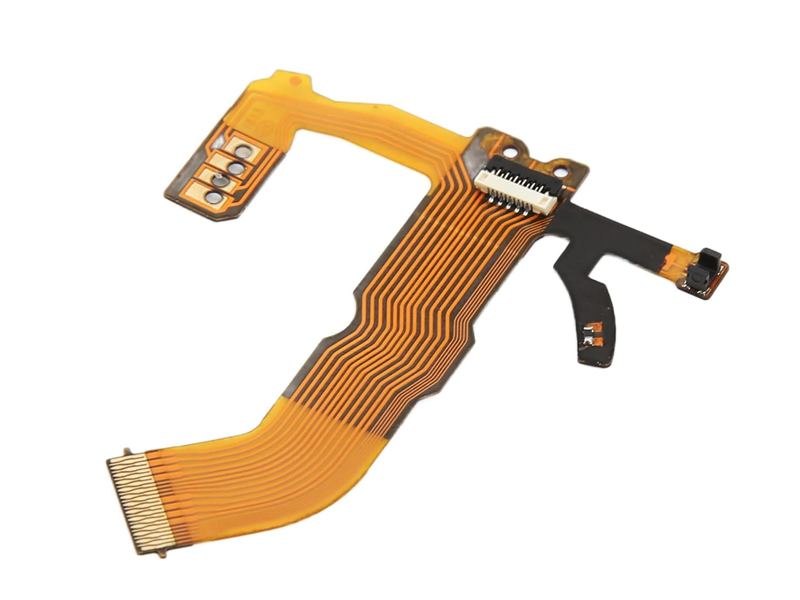

Our FPC for cameras is expertly engineered to meet the rigorous demands of modern camera technology. These flexible circuit boards are essential for ensuring reliable connectivity, high performance, and efficient use of space in a variety of camera models, from digital cameras to professional DSLR and mirrorless systems.
Key Features:
•High-Speed Data Transmission: Engineered to support high-speed data transfer, our FPCs facilitate rapid and reliable communication between the camera's sensors, processors, and other critical components, enhancing overall performance.
•Compact and Lightweight: The slim and lightweight design minimizes the footprint within the camera, allowing for more compact and lightweight camera designs without compromising functionality.
•Customizable Design: Available in various lengths, pin configurations, and layouts, our FPCs can be tailored to meet the specific design and functional requirements of different camera models and applications.
Applications:
•Digital Cameras: Ideal for compact digital cameras, ensuring efficient internal connections and space optimization.
•DSLR and Mirrorless Cameras: Perfect for the advanced electronic systems within professional DSLR and mirrorless cameras, supporting high-speed data transfer and reliable performance.
•Action Cameras: Suitable for rugged action cameras, providing durable and flexible connectivity solutions that withstand harsh conditions and frequent movements.
•Security Cameras: Enhances the functionality and reliability of security cameras, ensuring robust and stable internal connections for continuous operation.
Double Sided FPC Structure Reference (Specifications Optional):
2L FPC with Adhesive material | ||
PI (12.5/25/50/100um, etc.) | Coverlay | |
AD (15/25/35/50um, etc.) | ||
Copper (6/9/12/18/35/70/100um, etc.) | Base Material | |
AD (0/12.5/20/25um, etc.) | ||
PI (12.5/25/50/100um, etc.) | ||
AD (0/12.5/20/25um, etc.) | ||
Copper (6/9/12/18/35/70/100um, etc.) | ||
AD (15/25/35/50um, etc.) | Coverlay | |
PI (12.5/25/50/100um, etc.) |
2L FPC with Adhesiveless material | ||
PI (12.5/25/50/100um, etc.) | Coverlay | |
AD (15/25/35/50um, etc.) | ||
Copper (6/9/12/18/35/70/100um, etc.) | Base Material | |
PI (12.5/25/50/100um, etc.) | ||
Copper (6/9/12/18/35/70/100um, etc.) | ||
AD (15/25/35/50um, etc.) | Coverlay | |
PI (12.5/25/50/100um, etc.) |
This introduction emphasizes the specialized nature of FPCs for camera applications, highlighting their flexibility, durability, high-speed data transmission, and efficiency. It also showcases their diverse applications in various camera models, ensuring they meet the specific needs of modern camera technology.
Let’s talk! We’ll provide the perfect solution for you!
-
